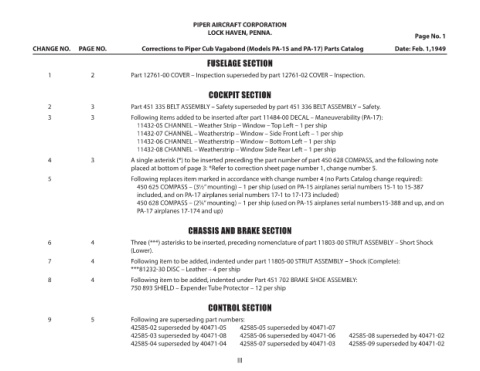

PIPER AIRCRAFT CORPORATION
LOCK HAVEN, PENNA.
Page No. 1
CHANGE NO. PAGE NO. Corrections to Piper Cub Vagabond (Models PA-15 and PA-17) Parts Catalog Date: Feb. 1,1949

FUSELAGE SECTION

1 2 Part 12761-00 COVER – Inspection superseded by part 12761-02 COVER – Inspection.

COCKPIT SECTION

2 3 Part 451 335 BELT ASSEMBLY – Safety superseded by part 451 336 BELT ASSEMBLY – Safety.
3 3 Following items added to be inserted after part 11484-00 DECAL – Maneuverability (PA-17):
11432-05 CHANNEL – Weather Strip – Window – Top Left – 1 per ship
11432-07 CHANNEL – Weatherstrip – Window – Side Front Left – 1 per ship
11432-06 CHANNEL – Weatherstrip – Window – Bottom Left – 1 per ship
11432-08 CHANNEL – Weatherstrip – Window Side Rear Left – 1 per ship
4 3 A single asterisk (*) to be inserted preceding the part number of part 450 628 COMPASS, and the following note
placed at bottom of page 3: *Refer to correction sheet page number 1, change number 5.
5 Following replaces item marked in accordance with change number 4 (no Parts Catalog change required):
450 625 COMPASS – (3½” mounting) – 1 per ship (used on PA-15 airplanes serial numbers 15-1 to 15-387
included, and on PA-17 airplanes serial numbers 17-1 to 17-173 included)
450 628 COMPASS – (2 ⁄8” mounting) – 1 per ship (used on PA-15 airplanes serial numbers15-388 and up, and on
5
PA-17 airplanes 17-174 and up)

CHASSIS AND BRAKE SECTION

6 4 Three (***) asterisks to be inserted, preceding nomenclature of part 11803-00 STRUT ASSEMBLY – Short Shock
(Lower).
7 4 Following item to be added, indented under part 11805-00 STRUT ASSEMBLY – Shock (Complete):
***81232-30 DISC – Leather – 4 per ship
8 4 Following item to be added, indented under Part 451 702 BRAKE SHOE ASSEMBLY:
750 893 SHIELD – Expender Tube Protector – 12 per ship

CONTROL SECTION

9 5 Following are superseding part numbers:
42585-02 superseded by 40471-05 42585-05 superseded by 40471-07
42585-03 superseded by 40471-08 42585-06 superseded by 40471-06 42585-08 superseded by 40471-02
42585-04 superseded by 40471-04 42585-07 superseded by 40471-03 42585-09 superseded by 40471-02

III
