AN515-8-5 SCREW
420-832 NUT PLATE
7-475 RIGHT REAR BAFFLE 7-476 LEFT REAR BAFFLE

93L-820 GROMMET AN931-8-20 GROMMET

AN842-10 ELBOW
N748-34 CLAMP – HOSE

N884-10-11 HOSE
AN520-10-32 BOLT
AN315-3 NUT
1-2415 ELBOW 2-738 ELBOW – HEATER MUFF

2-738 ELBOW – HEATER MUFF 3-479 MUFF INLET SIDE – CABIN HEATER
U3-478/479 MUFF OUTLET SIDE – CARB. HEATER AN520-10-44 BOLT • AN315-3 NUT
(Used on left and right stacks)

-7-470 BAFFLE RIGHT CRANKCASE -7-471 BAFFLE UPPER CRANKCASE
7-469 BAFFLE LEFT CRANKCASE
AN515-8-5 SCREW U2-849 FILTER U4-601-1 CARB. AIR INTAKE
420-832 NUT PLATE

7-477 RIGHT FRONT BAFFLE
AN515-8-5 SCREW AN520-1032 SCREW
420-832 NUT PLATE AN315-3 NUT

U4-585 ENGINE MOUNT

MS35489-14 GROMMET

OIL TEMPERATURE LINE
AN520-10-32 SCREW
AN315-3 NUT
AN515-8-6 SCREW
420-832-1 NUT PLATE

7-446-1 FLEXIBLE TUBING
1-2415 ELBOW
3-478 INTAKE SIDE CARB. HEATER
OIL FILTER CAP 1-2437 BAFFLE
TAPE &
SHELLAC
OIL SUMP NAS1149F0332P WASHER
AN380-2-2 COTTER
7-446-1 FLEX TUBING
OIL DRAIN PLUG

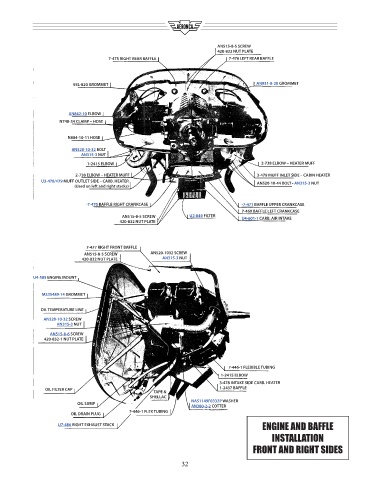

ENGINE AND BAFFLE
U7-486 RIGHT EXHAUST STACK
INSTALLATION
FRONT AND RIGHT SIDES

32
