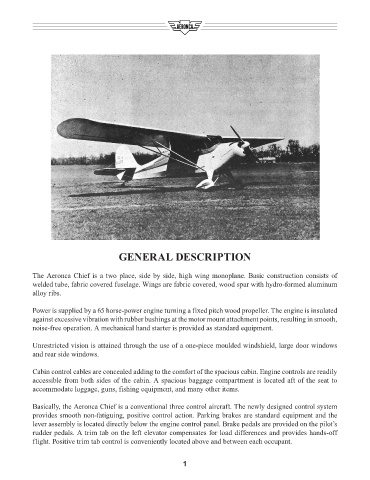

GENERAL DESCRIPTION

The Aeronca Chief is a two place, side by side, high wing monoplane. Basic construction consists of
welded tube, fabric covered fuselage. Wings are fabric covered, wood spar with hydro-formed aluminum
alloy ribs.

Power is supplied by a 65 horse-power engine turning a fixed pitch wood propeller. The engine is insulated
against excessive vibration with rubber bushings at the motor mount attachment points, resulting in smooth,
noise-free operation. A mechanical hand starter is provided as standard equipment.

Unrestricted vision is attained through the use of a one-piece moulded windshield, large door windows
and rear side windows.

Cabin control cables are concealed adding to the comfort of the spacious cabin. Engine controls are readily
accessible from both sides of the cabin. A spacious baggage compartment is located aft of the seat to
accommodate luggage, guns, fishing equipment, and many other items.

Basically, the Aeronca Chief is a conventional three control aircraft. The newly designed control system
provides smooth non-fatiguing, positive control action. Parking brakes are standard equipment and the
lever assembly is located directly below the engine control panel. Brake pedals are provided on the pilot’s
rudder pedals. A trim tab on the left elevator compensates for load differences and provides hands-off
flight. Positive trim tab control is conveniently located above and between each occupant.

1
