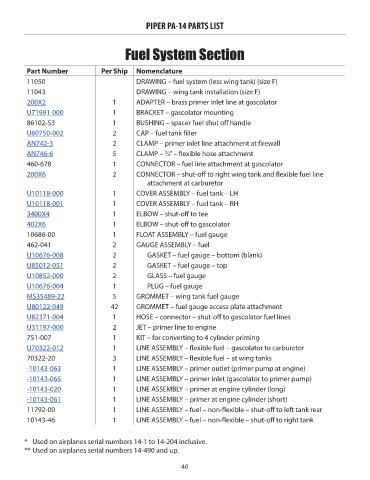

Page 44 - Piper PA-14 Family Cruiser Parts List

PIPER PA-14 PARTS LIST

Fuel System Section

Part Number Per Ship Nomenclature Price
11050 DRAWING – fuel system (less wing tank) (size F) NM!
11043 DRAWING – wing tank installation (size F) NM!
200X2 1 ADAPTER – brass primer inlet line at gascolator 2.33
U71991-000 1 BRACKET – gascolator mounting 94.36
86102-53 1 BUSHING – spacer fuel shut off handle NM!
U60750-002 2 CAP – fuel tank filler 142.57

AN742-3 2 CLAMP – primer inlet line attachment at firewall 0.72
AN746-6 5 CLAMP – ⁄4” – flexible hose attachment 1.97
3
460-678 1 CONNECTOR – fuel line attachment at gascolator NM!
200X6 2 CONNECTOR – shut-off to right wing tank and flexible fuel line 2.76
attachment at carburetor
U10118-000 1 COVER ASSEMBLY – fuel tank – LH 759.64
U10118-001 1 COVER ASSEMBLY – fuel tank – RH 759.64
3400X4 1 ELBOW – shut-off to tee 7.73
402X6 1 ELBOW – shut-off to gascolator 7.94
10686-00 1 FLOAT ASSEMBLY – fuel gauge NM!

462-041 2 GAUGE ASSEMBLY – fuel NM!
U10676-008 2 GASKET – fuel gauge – bottom (blank) 4.20
U85012-051 2 GASKET – fuel gauge – top 6.11
U10852-000 2 GLASS – fuel gauge 25.59
U10676-004 1 PLUG – fuel gauge 32.25
MS35489-22 5 GROMMET – wing tank fuel gauge 2.34
U80122-049 42 GROMMET – fuel gauge access plate attachment 6.28
U82371-004 1 HOSE – connector – shut-off to gascolator fuel lines 21.65
U31197-000 2 JET – primer line to engine 72.82

751-007 1 KIT – for converting to 4 cylinder priming NM!
U70322-012 1 LINE ASSEMBLY – flexible fuel – gascolator to carburetor 202.78
70322-20 3 LINE ASSEMBLY – flexible fuel – at wing tanks NM!
-10143-063 1 LINE ASSEMBLY – primer outlet (primer pump at engine) 71.25
-10143-065 1 LINE ASSEMBLY – primer inlet (gascolator to primer pump) 116.97
-10143-020 1 LINE ASSEMBLY – primer at engine cylinder (long) 39.68
-10143-061 1 LINE ASSEMBLY – primer at engine cylinder (short) 35.15

11792-00 1 LINE ASSEMBLY – fuel – non-flexible – shut-off to left tank rear NM!
10143-46 1 LINE ASSEMBLY – fuel – non-flexible – shut-off to right tank NM!

* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.
