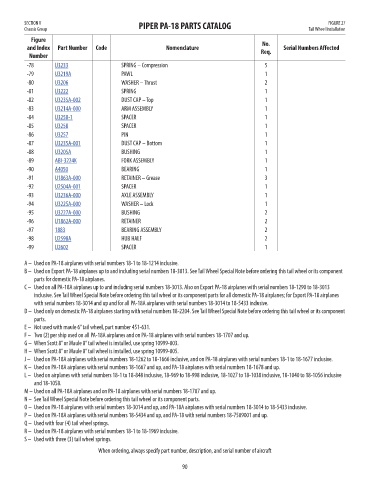

SECTION V PIPER PA-18 PARTS CATALOG FIGURE 27
Chassis Group Tail Wheel Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
-78 U3233 SPRING – Compression 5 4.05
-79 U3219A PAWL 1 38.77
-80 U3206 WASHER – Thrust 2 17
-81 U3222 SPRING 1 14.97
-82 U3235A-002 DUST CAP – Top 1 32.67
-83 U3214A-000 ARM ASSEMBLY 1 339.43
-84 U3258-1 SPACER 1 2.7
-85 U3258 SPACER 1 2.87
-86 U3257 PIN 1 9.85
-87 U3235A-001 DUST CAP – Bottom 1 33.98
-88 U3205A BUSHING 1 27.63
-89 ABI-3224K FORK ASSEMBLY 1 387
-90 A4050 BEARING 1 75.96
-91 U1863A-000 RETAINER – Grease 3 9.77
-92 U2504A-001 SPACER 1 18.21
-93 U3236A-000 AXLE ASSEMBLY 1 55.97
-94 U3225A-000 WASHER – Lock 1 7.28
-95 U3227A-000 BUSHING 2 32.55
-96 U1862A-000 RETAINER 2 11.19
-97 1883 BEARING ASSEMBLY 2 99.94
-98 U2598A HUB HALF 2 160.02
-99 U2602 SPACER 1 6.74

A – Used on PA-18 airplanes with serial numbers 18-1 to 18-1214 inclusive.
B – Used on Export PA-18 airplanes up to and including serial numbers 18-3013. See Tail Wheel Special Note before ordering this tail wheel or its component
parts for domestic PA-18 airplanes.
C – Used on all PA-18A airplanes up to and including serial numbers 18-3013. Also on Export PA-18 airplanes with serial numbers 18-1290 to 18-3013
inclusive. See Tail Wheel Special Note before ordering this tail wheel or its component parts for all domestic PA-18 airplanes; for Export PA-18 airplanes
with serial numbers 18-3014 and up and for all PA-18A airplanes with serial numbers 18-3014 to 18-5433 inclusive.
D – Used only on domestic PA-18 airplanes starting with serial numbers 18-2204. See Tail Wheel Special Note before ordering this tail wheel or its component
parts.
E – Not used with maule 6” tail wheel, part number 451-631.
F – Two (2) per ship used on all PA-18A airplanes and on PA-18 airplanes with serial numbers 18-1707 and up.
G – When Scott 8” or Maule 8” tail wheel is installed, use spring 10999-003.
H – When Scott 8” or Maule 8” tail wheel is installed, use spring 10999-005.
J – Used on PA-18A airplanes with serial numbers 18-1262 to 18-1666 inclusive, and on PA-18 airplanes with serial numbers 18-1 to 18-1677 inclusive.
K – Used on PA-18A airplanes with serial numbers 18-1667 and up, and PA-18 airplanes with serial numbers 18-1678 and up.
L – Used on airplanes with serial numbers 18-1 to 18-848 inclusive, 18-969 to 18-998 inclusive, 18-1027 to 18-1038 inclusive, 18-1040 to 18-1056 inclusive
and 18-1058.
M – Used on all PA-18A airplanes and on PA-18 airplanes with serial numbers 18-1707 and up.
N – See Tail Wheel Special Note before ordering this tail wheel or its component parts.
O – Used on PA-18 airplanes with serial numbers 18-3014 and up, and PA-18A airplanes with serial numbers 18-3014 to 18-5433 inclusive.
P – Used on PA-18A airplanes with serial numbers 18-5434 and up, and PA-18 with serial numbers 18-7509001 and up.
Q – Used with four (4) tail wheel springs.
R – Used on PA-18 airplanes with serial numbers 18-1 to 18-1969 inclusive.
S – Used with three (3) tail wheel springs.
When ordering, always specify part number, description, and serial number of aircraft

90
