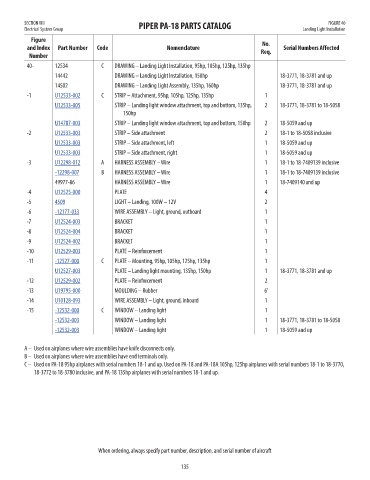

SECTION VIII PIPER PA-18 PARTS CATALOG FIGURE 40
Electrical System Group Landing Light Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
40- 12534 C DRAWING – Landing Light Installation, 95hp, 105hp, 125hp, 135hp NM!
14442 DRAWING – Landing Light Installation, 150hp 18-3771, 18-3781 and up NM!
14502 DRAWING – Landing Light Assembly, 135hp, 160hp 18-3771, 18-3781 and up NM!
-1 U12533-002 C STRIP – Attachment, 95hp, 105hp, 125hp, 135hp 1 6.26
U12533-005 STRIP – Landing light window attachment, top and bottom, 135hp, 2 18-3771, 18-3781 to 18-5058 9.24
150hp
U14787-003 STRIP – Landing light window attachment, top and bottom, 150hp 2 18-5059 and up 16.39
-2 U12533-003 STRIP – Side attachment 2 18-1 to 18-5058 inclusive 9.11

U12533-003 STRIP – Side attachment, left 1 18-5059 and up 9.11
U12533-003 STRIP – Side attachment, right 1 18-5059 and up 9.11
-3 U12298-012 A HARNESS ASSEMBLY – Wire 1 18-1 to 18-7409139 inclusive 292.91
-12298-007 B HARNESS ASSEMBLY – Wire 1 18-1 to 18-7409139 inclusive 284.46
49977-86 HARNESS ASSEMBLY – Wire 1 18-7409140 and up NM!
-4 U12525-000 PLATE 4 57.12
-5 4509 LIGHT – Landing, 100W – 12V 2 21.84
-6 -12177-033 WIRE ASSEMBLY – Light, ground, outboard 1 15.29
-7 U12524-003 BRACKET 1 22.67
-8 U12524-004 BRACKET 1 22.55
-9 U12524-002 BRACKET 1 30.46
-10 U12529-003 PLATE – Reinforcement 1 38.27
-11 -12527-000 C PLATE – Mounting, 95hp, 105hp, 125hp, 135hp 1 137.64
U12527-003 PLATE – Landing light mounting, 135hp, 150hp 1 18-3771, 18-3781 and up 142.99
-12 U12529-002 PLATE – Reinforcement 2 31.77
-13 U19795-000 MOULDING – Rubber 6’ 29.86
-14 U10128-093 WIRE ASSEMBLY – Light, ground, inboard 1 28.44
-15 -12532-000 C WINDOW – Landing light 1 83.16
-12532-003 WINDOW – Landing light 1 18-3771, 18-3781 to 18-5058 103.95
-12532-003 WINDOW – Landing light 1 18-5059 and up 103.95

A – Used on airplanes where wire assemblies have knife disconnects only.
B – Used on airplanes where wire assemblies have end terminals only.
C – Used on PA-18 95hp airplanes with serial numbers 18-1 and up. Used on PA-18 and PA-18A 105hp, 125hp airplanes with serial numbers 18-1 to 18-3770,
18-3772 to 18-3780 inclusive, and PA-18 135hp airplanes with serial numbers 18-1 and up.

When ordering, always specify part number, description, and serial number of aircraft

135
