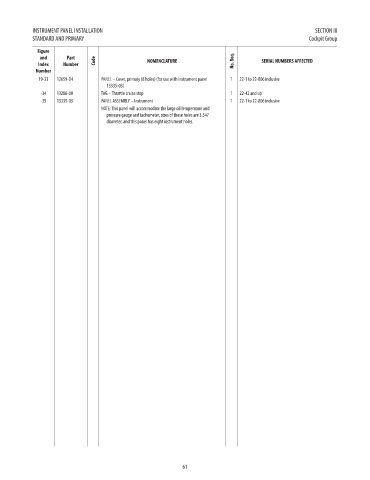

Page 73 - Piper PA-22 Tri-Pacer Parts Catalog

INSTRUMENT PANEL INSTALLATION SECTION III
STANDARD AND PRIMARY Cockpit Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
19-33 12659-04 PANEL – Cover, primary (8 holes) (for use with instrument panel 1 22-1 to 22-806 inclusive NM!
13335-03)
-34 13286-00 TAG – Throttle cruise stop 1 22-42 and up NM!
-35 13335-03 PANEL ASSEMBLY – Instrument 1 22-1 to 22-806 inclusive NM!
NOTE: This panel will accommodate the large oil temperature and
pressure gauge and tachometer, sizes of these holes are 3.547
diameter, and this panel has eight instrument holes.
