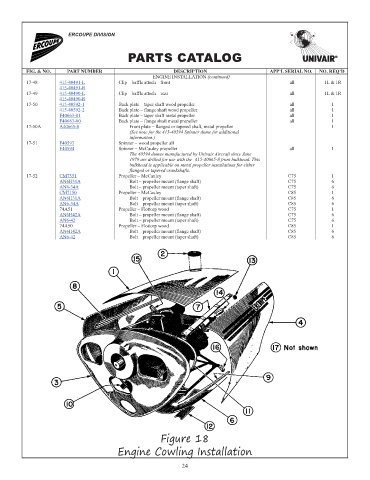

Page 29 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

FIG. & NO. PART NUMBER DESCRIPTION APP’L SERIAL NO. NO. REQ’D
ENGINE INSTALLATION (continued)
17-48 415-40491-L Clip – baffle attach – front all 1L & 1R 2.90
415-40491-R
17-49 415-40490-L Clip – baffle attach – rear all 1L & 1R 2.90
415-40490-R
17-50 415-40592-1 Back plate – taper shaft wood propeller all 1 317.11
415-40592-2 Back plate – flange shaft wood propeller all 1 249.34
F40663-01 Back plate – taper shaft metal propeller all 1 488.25
F40663-00 Back plate – flange shaft metal propeller all 1 422.28
17-50A A40665-8 Front plate – flanged or tapered shaft, metal propeller 1 150.56
(See note for the 415-40594 Spinner dome for additional
information.)
17-51 F40593 Spinner – wood propeller all 613.98
F40594 Spinner – McCauley propeller all 1 508.10
The 40594 domes manufactured by Univair Aircraft since June
1979 are drilled for use with the 415-40665-8 front bulkhead. This
bulkhead is applicable on metal propeller installations for either
flanged or tapered crankshafts.
17-52 CM7351 Propeller – McCauley C75 1 4728.80
AN6H31A Bolt – propeller mount (flange shaft) C75 6 3.90
AN6-34A Bolt – propeller mount (taper shaft) C75 6 1.50
CM7150 Propeller – McCauley C85 1 8546.05
AN6H31A Bolt – propeller mount (flange shaft) C85 6 3.90
AN6-34A Bolt – propeller mount (taper shaft) C85 6 1.50
74A51 Propeller – Flottorp wood C75 1 NM!
AN6H42A Bolt – propeller mount (flange shaft) C75 6 6.00
AN6-42 Bolt – propeller mount (taper shaft) C75 6 4.30
74A50 Propeller – Flottorp wood C85 1 NM!
AN6H42A Bolt – propeller mount (flange shaft) C85 6 6.00
AN6-42 Bolt – propeller mount (taper shaft) C85 6 4.30

Figure 18
Engine Cowling Installation

24
