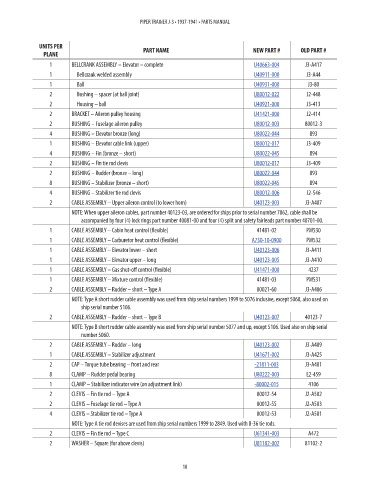

Page 26 - 1937-41 Piper J-3 Trainer Parts Catalog

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 BELLCRANK ASSEMBLY – Elevator – complete U40663-004 J3-A417 905.74
1 Bellcrank welded assembly U40911-000 J3-A44 157.86
1 Ball U40931-000 J3-80 98.84

2 Bushing – spacer (at ball joint) U80012-022 J2-448 13.16
2 Housing – ball U40921-000 J3-413 70.30
2 BRACKET – Aileron pulley housing U41421-000 J2-414 25.75
2 BUSHING – Fuselage aileron pulley U80012-003 80012-3 6.56
4 BUSHING – Elevator bronze (long) U80022-044 893 1.40
1 BUSHING – Elevator cable link (upper) U80012-017 J3-409 14.01
4 BUSHING – Fin (bronze – short) U80022-045 894 1.76
2 BUSHING – Fin tie rod clevis U80012-017 J3-409 14.01
2 BUSHING – Rudder (bronze – long) U80022-044 893 1.40
8 BUSHING – Stabilizer (bronze – short) U80022-045 894 1.76
4 BUSHING – Stabilizer tie rod clevis U80012-006 J2-546 19.76
2 CABLE ASSEMBLY – Upper aileron control (to lower horn) U40123-003 J3-A407 158.09
NOTE: When upper aileron cables, part number 40123-03, are ordered for ships prior to serial number 7862, cable shall be
accompanied by four (4) lock rings part number 40081-00 and four (4) split and safety fairleads part number 40701-00.
1 CABLE ASSEMBLY – Cabin heat control (flexible) 41481-02 PM530 NM!
1 CABLE ASSEMBLY – Carburetor heat control (flexible) A730-10-0900 PM532 143.92
1 CABLE ASSEMBLY – Elevator lower – short U40123-006 J3-A411 166.88
1 CABLE ASSEMBLY – Elevator upper – long U40123-005 J3-A410 199.92
1 CABLE ASSEMBLY – Gas shut-off control (flexible) U41471-000 4237 386.51
1 CABLE ASSEMBLY – Mixture control (flexible) 41481-03 PM531 NM!
2 CABLE ASSEMBLY – Rudder – short – Type A 00021-60 J3-A406 NM!
NOTE: Type A short rudder cable assembly was used from ship serial numbers 1999 to 5076 inclusive, except 5060, also used on
ship serial number 5106.
2 CABLE ASSEMBLY – Rudder – short – Type B U40123-007 40123-7 160.05

NOTE: Type B short rudder cable assembly was used from ship serial number 5077 and up, except 5106. Used also on ship serial
number 5060.
2 CABLE ASSEMBLY – Rudder – long U40123-002 J3-A409 230.55
1 CABLE ASSEMBLY – Stabilizer adjustment U41671-002 J3-A425 338.18
2 CAP – Torque tube bearing – front and rear -21811-003 J3-A401 211.54
8 CLAMP – Rudder pedal bearing U80222-003 E2-459 21.33
1 CLAMP – Stabilizer indicator wire (on adjustment link) -80002-015 4106 23.71
2 CLEVIS – Fin tie rod – Type A 00012-54 J2-A502 NM!
2 CLEVIS – Fuselage tie rod – Type A 00012-55 J2-A503 NM!
4 CLEVIS – Stabilizer tie rod – Type A 00012-53 J2-A501 NM!
NOTE: Type A tie rod devises are used from ship serial numbers 1999 to 2849. Used with 8-36 tie rods.
2 CLEVIS – Fin tie rod – Type C U61341-003 A472 36.88

2 WASHER – Square (for above clevis) U81102-002 81102-2 6.74

18
