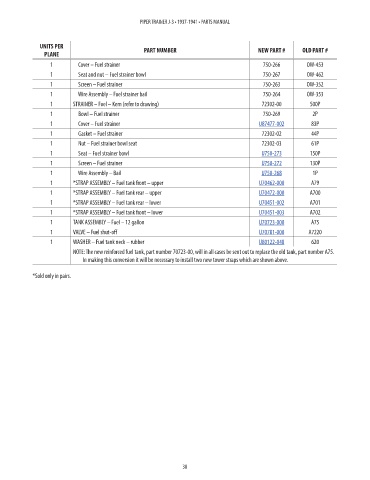

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL
UNITS PER PART NUMBER NEW PART # OLD PART # PRICE
PLANE
1 Cover – Fuel strainer 750-266 OW-453 NM!
1 Seat and nut – Fuel strainer bowl 750-267 OW-462 NM!
1 Screen – Fuel strainer 750-263 OW-352 NM!
1 Wire Assembly – Fuel strainer bail 750-264 OW-353 NM!
1 STRAINER – Fuel – Kern (refer to drawing) 72302-00 500P NM!
1 Bowl – Fuel strainer 750-269 2P NM!
1 Cover – Fuel strainer U87477-002 83P 135.42
1 Gasket – Fuel strainer 72302-02 44P NM!
1 Nut – Fuel strainer bowl seat 72302-03 61P NM!
1 Seat – Fuel strainer bowl U750-273 150P 20.84
1 Screen – Fuel strainer U750-272 130P 3.18
1 Wire Assembly – Bail U750-268 1P 47.41
1 *STRAP ASSEMBLY – Fuel tank front – upper U70462-000 A79 212.51
1 *STRAP ASSEMBLY – Fuel tank rear – upper U70472-000 A700 176.55
1 *STRAP ASSEMBLY – Fuel tank rear – lower U70451-002 A701 72.64
1 *STRAP ASSEMBLY – Fuel tank front – lower U70451-003 A702 108.54
1 TANK ASSEMBLY – Fuel – 12 gallon U70723-000 A75 1112.99
1 VALVE – Fuel shut-off U70781-000 A7220 220.56
1 WASHER – Fuel tank neck – rubber U80122-048 620 9.61
NOTE: The new reinforced fuel tank, part number 70723-00, will in all cases be sent out to replace the old tank, part number A75.
In making this conversion it will be necessary to install two new tower straps which are shown above.
*Sold only in pairs.
