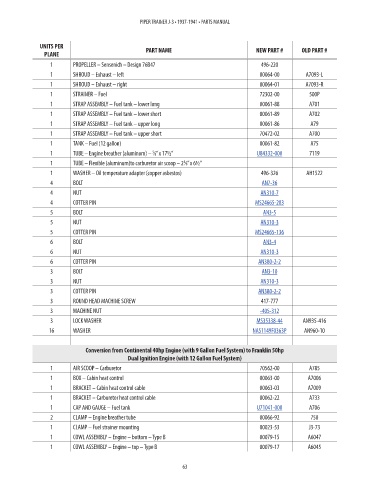

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 PROPELLER – Sensenich – Design 76B47 496-220 NM!
1 SHROUD – Exhaust – left 00064-00 A7093-L NM!
1 SHROUD – Exhaust – right 00064-01 A7093-R NM!

1 STRAINER – Fuel 72302-00 500P NM!
1 STRAP ASSEMBLY – Fuel tank – lower long 00061-88 A701 NM!
1 STRAP ASSEMBLY – Fuel tank – lower short 00061-89 A702 NM!
1 STRAP ASSEMBLY – Fuel tank – upper long 00061-86 A79 NM!
1 STRAP ASSEMBLY – Fuel tank – upper short 70472-02 A700 NM!
1 TANK – Fuel (12 gallon) 00061-82 A75 NM!
1 TUBE – Engine breather (aluminum) – ⁄8” x 17½” U84332-000 7119 129.28
5
1 TUBE – Flexible (aluminum)to carburetor air scoop – 2 ⁄8” x 6½” x
1
1 WASHER – Oil temperature adapter (copper asbestos) 496-326 AH1522 NM!
4 BOLT AN7-36 11.82
4 NUT AN310-7 1.50
4 COTTER PIN MS24665-283 0.14
5 BOLT AN3-5 0.60
5 NUT AN310-3 2.62
5 COTTER PIN MS24665-136 0.06
6 BOLT AN3-4 1.00
6 NUT AN310-3 2.62
6 COTTER PIN AN380-2-2 0.04
3 BOLT AN3-10 0.72
3 NUT AN310-3 2.62
3 COTTER PIN AN380-2-2 0.04
3 ROUND HEAD MACHINE SCREW 417-777 NM!
3 MACHINE NUT -405-312 0.08
3 LOCK WASHER MS35338-44 AN935-416 0.08
16 WASHER NAS1149F0363P AN960-10 0.08

Conversion from Continental 40hp Engine (with 9 Gallon Fuel System) to Franklin 50hp
Dual Ignition Engine (with 12 Gallon Fuel System)
1 AIR SCOOP – Carburetor 70562-00 A785 NM!
1 BOX – Cabin heat control 00063-00 A7006 NM!
1 BRACKET – Cabin heat control cable 00063-03 A7009 NM!
1 BRACKET – Carburetor heat control cable 00062-22 A733 NM!
1 CAP AND GAUGE – Fuel tank U71041-000 A706 211.93
2 CLAMP – Engine breather tube 00066-92 750 NM!
1 CLAMP – Fuel strainer mounting 00023-53 J3-73 NM!
1 COWL ASSEMBLY – Engine – bottom – Type B 00079-15 A6047 NM!
1 COWL ASSEMBLY – Engine – top – Type B 00079-17 A6045 NM!
