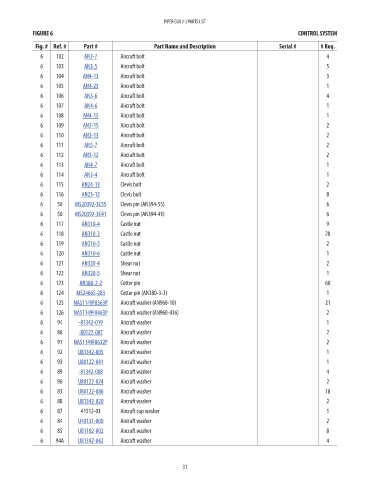

PIPER CUB J-3 PARTS LIST
FIGURE 6 CONTROL SYSTEM
Fig. # Ref. # Part # Part Name and Description Serial # # Req. Price
6 102 AN3-7 Aircraft bolt 4 1.00
6 103 AN3-5 Aircraft bolt 5 0.60
6 104 AN4-13 Aircraft bolt 3 0.68
6 105 AN4-25 Aircraft bolt 1 0.88
6 106 AN3-6 Aircraft bolt 4 0.52
6 107 AN4-6 Aircraft bolt 1 0.52
6 108 AN4-15 Aircraft bolt 1 1.00
6 109 AN3-15 Aircraft bolt 2 0.84
6 110 AN3-13 Aircraft bolt 2 1.02
6 111 AN5-7 Aircraft bolt 2 0.78
6 112 AN3-12 Aircraft bolt 2 1.06
6 113 AN4-7 Aircraft bolt 1 0.58
6 114 AN3-4 Aircraft bolt 1 1.00
6 115 AN24-13 Clevis bolt 2 2.10
6 116 AN23-12 Clevis bolt 8 1.70
6 50 MS20392-3C55 Clevis pin (AN394-55) 6 1.28
6 50 MS20392-3C41 Clevis pin (AN394-41) 6 2.50
6 117 AN310-4 Castle nut 9 3.10
6 118 AN310-3 Castle nut 28 2.62
6 119 AN310-5 Castle nut 2 2.20
6 120 AN310-6 Castle nut 1 2.58
6 121 AN320-4 Shear nut 2 2.52
6 122 AN320-5 Shear nut 1 1.00
6 123 AN380-2-2 Cotter pin 60 0.04
6 124 MS24665-283 Cotter pin (AN380-3-3) 1 0.14
6 125 NAS1149F0363P Aircraft washer (AN960-10) 21 0.08
6 126 NAS1149F0463P Aircraft washer (AN960-416) 2 0.06
6 94 -81342-019 Aircraft washer 1 0.14
6 86 -80122-007 Aircraft washer 2 9.53
6 91 NAS1149F0632P Aircraft washer 2 0.06
6 92 U81342-005 Aircraft washer 1 10.26
6 93 U80122-041 Aircraft washer 1 14.72
6 89 81342-08 Aircraft washer 4 NM!
6 90 U80122-024 Aircraft washer 2 4.61
6 83 U80122-086 Aircraft washer 18 2.71
6 88 U81342-020 Aircraft washer 2 3.65
6 87 41512-03 Aircraft cup washer 1 NM!
6 84 U40131-000 Aircraft washer 2 10.08
6 85 U81102-002 Aircraft washer 8 6.74
6 94A U81342-042 Aircraft washer 4 3.47
