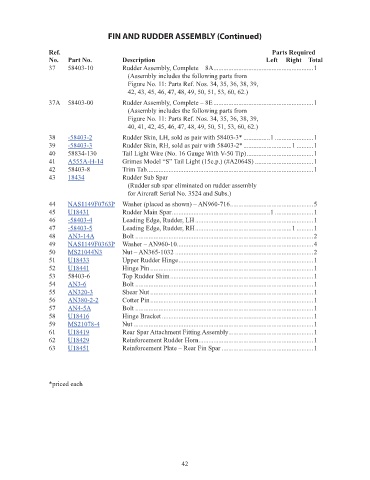

FIN AND RUDDER ASSEMBLY (Continued)

Ref. Parts Required
No. Part No. Description Left Right Total
37 58403-10 Rudder Assembly, Complete – 8A ............................................................1 NM!
(Assembly includes the following parts from
Figure No. 11: Parts Ref. Nos. 34, 35, 36, 38, 39,
42, 43, 45, 46, 47, 48, 49, 50, 51, 53, 60, 62.)
37A 58403-00 Rudder Assembly, Complete – 8E ............................................................1 NM!
(Assembly includes the following parts from
Figure No. 11: Parts Ref. Nos. 34, 35, 36, 38, 39,
40, 41, 42, 45, 46, 47, 48, 49, 50, 51, 53, 60, 62.)
38 -58403-2 Rudder Skin, LH, sold as pair with 58403-3* ................1 .......................1 323.16
39 -58403-3 Rudder Skin, RH, sold as pair with 58403-2* .............................1 ..........1 323.16
40 58834-130 Tail Light Wire (No. 16 Gauge With V-50 Tip) ........................................1 NM!
41 A555A-H-14 Grimes Model “S” Tail Light (15c.p.) (#A2064S) ...................................1 NM!
42 58403-8 Trim Tab ....................................................................................................1 NM!
43 18434 Rudder Sub Spar ........................................................................................ NM!
(Rudder sub spar eliminated on rudder assembly
for Aircraft Serial No. 3524 and Subs.)
44 NAS1149F0763P Washer (placed as shown) – AN960-716 ..................................................5 0.20
45 U18431 Rudder Main Spar ...........................................................1 .......................1 68.24
46 -58403-4 Leading Edge, Rudder, LH .......................................................................1 94.86
47 -58403-5 Leading Edge, Rudder, RH ..........................................................1 ..........1 91.06
48 AN3-14A Bolt ...........................................................................................................2 0.18
49 NAS1149F0363P Washer – AN960-10 ..................................................................................4 0.08
50 MS21044N3 Nut – AN365-1032 ...................................................................................2 0.51
51 U18433 Upper Rudder Hinge .................................................................................1 149.79
52 U18441 Hinge Pin ..................................................................................................1 38.07
53 58403-6 Top Rudder Shim ......................................................................................1 NM!
54 AN3-6 Bolt ...........................................................................................................1 0.52
55 AN320-3 Shear Nut ..................................................................................................1 1.00
56 AN380-2-2 Cotter Pin ..................................................................................................1 0.04
57 AN4-5A Bolt ...........................................................................................................1 0.46
58 U18416 Hinge Bracket ...........................................................................................1 36.05
59 MS21078-4 Nut ............................................................................................................1 17.40
61 U18419 Rear Spar Attachment Fitting Assembly ...................................................1 595.72
62 U18429 Reinforcement Rudder Horn .....................................................................1 119.46
63 U18451 Reinforcement Plate – Rear Fin Spar .......................................................1 34.98

*priced each
