Page 5 - Luscombe Silvaire Model 8 Master Parts List

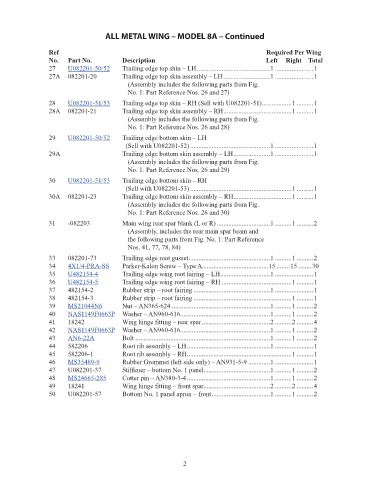

ALL METAL WING – MODEL 8A – Continued

Ref Required Per Wing
No. Part No. Description Left Right Total
27 U082201-50/52 Trailing edge top shin – LH ............................................1 .......................1 813.87
27A 082201-20 Trailing edge top skin assembly – LH ............................1 .......................1 NM!
(Assembly includes the following parts from Fig.
No. 1: Part Reference Nos. 26 and 27)
28 U082201-51/53 Trailing edge top skin – RH (Sell with U082201-51)..................1 ..........1 813.87
28A 082201-21 Trailing edge top skin assembly – RH .........................................1 ..........1 NM!
(Assembly includes the following parts from Fig.
No. 1: Part Reference Nos. 26 and 28)

29 U082201-50/52 Trailing edge bottom skin – LH 813.87
(Sell with U082201-52) ................................................1 .......................1
29A Trailing edge bottom skin assembly – LH ......................1 .......................1 NM!
(Assembly includes the following parts from Fig.
No. 1: Part Reference Nos. 26 and 29)
30 U082201-51/53 Trailing edge bottom skin – RH 813.87
(Sell with U082201-53) .............................................................1 ..........1
30A 082201-23 Trailing edge bottom skin assembly – RH ...................................1 ..........1 NM!
(Assembly includes the following parts from Fig.
No. 1: Part Reference Nos. 26 and 30)
31 -082203 Main wing rear spar blank (L or R) ................................1 ..........1 ..........2 NM!
(Assembly, includes the rear main spar beam and
the following parts from Fig. No. 1: Part Reference
Nos. 41, 77, 78, 84)
33 082201-73 Trailing edge root gusset .................................................1 ..........1 ..........2 NM!
34 4X1/4-PRA-SS Parker-Kalon Screw – Type A ........................................15 ........15 ........30 0.02
35 U482154-4 Trailing edge wing root fairing – LH ..............................1 .......................1 141.09
36 U482154-5 Trailing edge wing root fairing – RH ..........................................1 ..........1 141.09
37 482154-2 Rubber strip – root fairing ..............................................1 .......................1 NM!
38 482154-3 Rubber strip – root fairing ...........................................................1 ..........1 NM!
39 MS21044N6 Nut – AN365-624 ...........................................................1 ..........1 ..........2 0.58
40 NAS1149F0663P Washer – AN960-616 ......................................................1 ..........1 ..........2 0.11
41 18242 Wing hinge fitting – rear spar .........................................2 ..........2 ..........4 NM!
42 NAS1149F0663P Washer – AN960-616 ......................................................1 ..........1 ..........2 0.11
43 AN6-22A Bolt .................................................................................1 ..........1 ..........2 0.86
44 582206 Root rib assembly – LH ..................................................1 .......................1 NM!
45 582206-1 Root rib assembly – RH ...............................................................1 ..........1 NM!
46 MS35489-9 Rubber Grommet (left side only) – AN931-5-9 .............1 .......................1 0.78
47 U082201-37 Stiffener – bottom No. 1 panel ........................................1 ..........1 ..........2 NM!
48 MS24665-285 Cotter pin – AN380-3-4 ..................................................1 ..........1 ..........2 0.04
49 18241 Wing hinge fitting – front spar........................................2 ..........2 ..........4 NM!
50 U082201-57 Bottom No. 1 panel apron – front ...................................1 ..........1 ..........2 NM!

2
