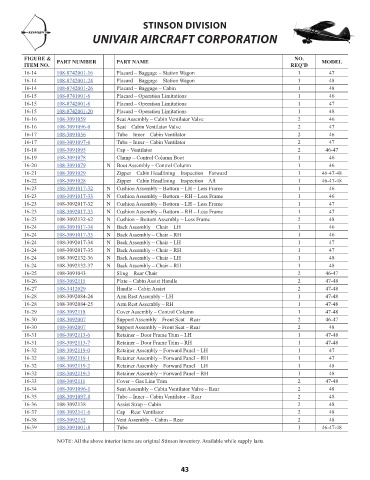

STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION
FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
16-14 108-8742001-16 Placard – Baggage – Station Wagon 1 47 72.82
16-14 108-8742001-24 Placard – Baggage – Station Wagon 1 48 29.93
16-14 108-8742001-26 Placard – Baggage – Cabin 1 48 30.06
16-15 108-8741001-6 Placard – Operation Limitations 1 46 27.99
16-15 108-8742001-6 Placard – Operation Limitations 1 47 40.74
16-15 108-8742001-20 Placard – Operation Limitations 1 48 28.59
16-16 108-3091059 Seat Assembly – Cabin Ventilator Valve 2 46 132.08
16-16 108-3091096-0 Seat – Cabin Ventilator Valve 2 47 197.54
16-17 108-3091056 Tube – Inner – Cabin Ventilator 2 46 128.17
16-17 108-3091097-6 Tube – Inner – Cabin Ventilator 2 47 82.33
16-18 108-3091095 Cap – Ventilator 2 46-47 118.04
16-19 108-3091078 Clamp – Control Column Boot 1 46 89.34
16-20 108-3091079 N Boot Assembly – Control Column 1 46 40.65
16-21 108-3091029 Zipper – Cabin Headlining – Inspection – Forward 1 46-47-48 13.42
16-22 108-3091028 Zipper – Cabin Headlining – Inspection – Aft 1 46-47-48 16.38
16-23 108-3091017-32 N Cushion Assembly – Bottom – LH – Less Frame 1 46 309.38
16-23 108-3091017-33 N Cushion Assembly – Bottom – RH – Less Frame 1 46 309.38
16-23 108-3092017-32 N Cushion Assembly – Bottom – LH – Less Frame 1 47 NM!
16-23 108-3092017-33 N Cushion Assembly – Bottom – RH – Less Frame 1 47 322.74
16-23 108-3092132-62 N Cushion – Bottom Assembly – Less Frame 2 48 NM!
16-24 108-3091017-34 N Back Assembly – Chair – LH 1 46 373.78
16-24 108-3091017-35 N Back Assembly – Chair – RH 1 46 372.03
16-24 108-3092017-34 N Back Assembly – Chair – LH 1 47 NM!
16-24 108-3092017-35 N Back Assembly – Chair – RH 1 47 NM!
16-24 108-3092132-36 N Back Assembly – Chair – LH 1 48 NM!
16-24 108-3092132-37 N Back Assembly – Chair – RH 1 48 NM!
16-25 108-3091043 Sling – Rear Chair 2 46-47 NM!
16-26 108-3092115 Plate – Cabin Assist Handle 2 47-48 10.42
16-27 108-3412029 Handle – Cabin Assist 2 47-48 57.96
16-28 108-3092084-24 Arm Rest Assembly – LH 1 47-48 NM!
16-28 108-3092084-25 Arm Rest Assembly – RH 1 47-48 NM!
16-29 108-3092118 Cover Assembly – Control Column 1 47-48 124.56
16-30 108-3092007 Support Assembly – Front Seat – Rear 2 46-47 350.57
16-30 108-3092007 Support Assembly – Front Seat – Rear 2 48 350.57
16-31 108-3092113-6 Retainer – Door Frame Trim – LH 1 47-48 145.37
16-31 108-3092113-7 Retainer – Door Frame Trim – RH 1 47-48 145.37
16-32 108-3092119-0 Retainer Assembly – Forward Panel – LH 1 47 48.22
16-32 108-3092119-1 Retainer Assembly – Forward Panel – RH 1 47 48.22
16-32 108-3092119-2 Retainer Assembly – Forward Panel – LH 1 48 48.55
16-32 108-3092119-3 Retainer Assembly – Forward Panel – RH 1 48 51.00
16-33 108-3092111 Cover – Gas Line Trim 2 47-48 185.68
16-34 108-3091096-1 Seat Assembly – Cabin Ventilator Valve – Rear 2 48 65.00
16-35 108-3091097-8 Tube – Inner – Cabin Ventilator – Rear 2 48 140.92
16-36 108-3092138 Assist Strap – Cabin 2 48 NM!
16-37 108-3092141-6 Cap – Rear Ventilator 2 48 159.08
16-38 108-3092152 Vent Assembly – Cabin – Rear 2 48 NM!
16-39 108-3091001-8 Tube 1 46-47-48 143.25
NOTE: All the above interior items are original Stinson inventory. Available while supply lasts.
