STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

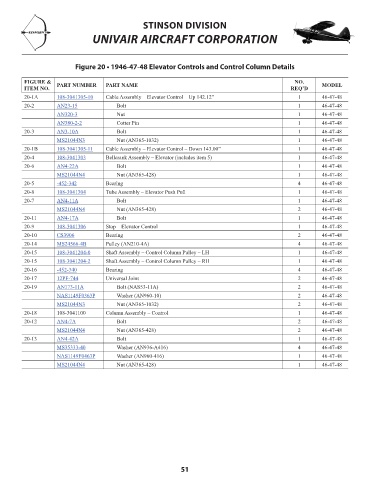

Figure 20 • 1946-47-48 Elevator Controls and Control Column Details

FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
20-1A 108-3041305-10 Cable Assembly – Elevator Control – Up 142.12” 1 46-47-48 156.91
20-2 AN23-15 Bolt 1 46-47-48 1.79
AN320-3 Nut 1 46-47-48 1.00
AN380-2-2 Cotter Pin 1 46-47-48 0.04
20-3 AN3-10A Bolt 1 46-47-48 0.46
MS21044N3 Nut (AN365-1032) 1 46-47-48 0.51
20-1B 108-3041305-11 Cable Assembly – Elevator Control – Down 143.00” 1 46-47-48 163.91
20-4 108-3041303 Bellcrank Assembly – Elevator (includes item 5) 1 46-47-48 161.56
20-6 AN4-22A Bolt 1 46-47-48 0.48
MS21044N4 Nut (AN365-428) 1 46-47-48 0.30
20-5 -452-342 Bearing 4 46-47-48 10.00
20-8 108-3041304 Tube Assembly – Elevator Push Pull 1 46-47-48 511.12
20-7 AN4-11A Bolt 1 46-47-48 0.62
MS21044N4 Nut (AN365-428) 2 46-47-48 0.30
20-11 AN4-17A Bolt 1 46-47-48 0.54
20-9 108-3041306 Stop – Elevator Control 1 46-47-48 228.94
20-10 CS3906 Bearing 2 46-47-48 38.74
20-14 MS24566-4B Pulley (AN210-4A) 4 46-47-48 58.40
20-15 108-3041204-0 Shaft Assembly – Control Column Pulley – LH 1 46-47-48 150.32
20-15 108-3041204-2 Shaft Assembly – Control Column Pulley – RH 1 46-47-48 150.32
20-16 -452-340 Bearing 4 46-47-48 20.00
20-17 12PF-744 Universal Joint 2 46-47-48 514.80
20-19 AN173-11A Bolt (NAS53-11A) 2 46-47-48 1.10
NAS1149F0363P Washer (AN960-10) 2 46-47-48 0.08
MS21044N3 Nut (AN365-1032) 2 46-47-48 0.51
20-18 108-3041100 Column Assembly – Control 1 46-47-48 NM!
20-12 AN4-7A Bolt 2 46-47-48 0.50
MS21044N4 Nut (AN365-428) 2 46-47-48 0.30
20-13 AN4-42A Bolt 1 46-47-48 7.95
MS35333-40 Washer (AN936-A416) 4 46-47-48 0.06
NAS1149F0463P Washer (AN960-416) 1 46-47-48 0.06
MS21044N4 Nut (AN365-428) 1 46-47-48 0.30

51
