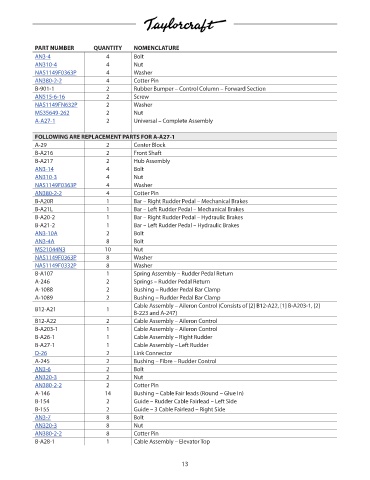

Page 17 - Taylorcraft Interactive Digital Parts Catalog
P. 17

PART NUMBER        QUANTITY     NOMENCLATURE                                                                           PRICE
             AN3-4                  4        Bolt                                                                                    0.6
             AN310-4                4        Nut                                                                                     1.6
             NAS1149F0363P          4        Washer                                                                                 0.04
             AN380-2-2              4        Cotter Pin                                                                             0.04
             B-901-1                2        Rubber Bumper – Control Column – Forward Section                                       NM!
             AN515-6-16             2        Screw                                                                                  0.11
             NAS1149FN632P          2        Washer                                                                                 0.06
             MS35649-262            2        Nut                                                                                    0.14
             A-A27-1                2        Universal – Complete Assembly                                                          NM!
                                                                                                                                      x
             FOLLOWING ARE REPLACEMENT PARTS FOR A-A27-1
             A-29                   2        Center Block                                                                           NM!
             B-A216                 2        Front Shaft                                                                            NM!
             B-A217                 2        Hub Assembly                                                                           NM!
             AN3-14                 4        Bolt                                                                                   0.66
             AN310-3                4        Nut                                                                                     1.5
             NAS1149F0363P          4        Washer                                                                                 0.04
             AN380-2-2              4        Cotter Pin                                                                             0.04
             B-A20R                 1        Bar – Right Rudder Pedal – Mechanical Brakes                                           NM!
             B-A21L                 1        Bar – Left Rudder Pedal – Mechanical Brakes                                            NM!
             B-A20-2                1        Bar – Right Rudder Pedal – Hydraulic Brakes                                            NM!
             B-A21-2                1        Bar – Left Rudder Pedal – Hydraulic Brakes                                             NM!
             AN3-10A                2        Bolt                                                                                    0.2
             AN3-4A                 8        Bolt                                                                                    0.2
             MS21044N3              10       Nut                                                                                    0.24
             NAS1149F0363P          8        Washer                                                                                 0.04
             NAS1149F0332P          8        Washer                                                                                 0.04
             B-A107                 1        Spring Assembly – Rudder Pedal Return                                                  NM!
             A-246                  2        Springs – Rudder Pedal Return                                                          NM!
             A-1088                 2        Bushing – Rudder Pedal Bar Clamp                                                       NM!
             A-1089                 2        Bushing – Rudder Pedal Bar Clamp                                                       NM!
                                             Cable Assembly – Aileron Control (Consists of [2] B12-A22, [1] B-A203-1, [2]
             B12-A21                1                                                                                               NM!
                                             B-223 and A-247}
             B12-A22                2        Cable Assembly – Aileron Control                                                       NM!
             B-A203-1               1        Cable Assembly – Aileron Control                                                       NM!
             B-A26-1                1        Cable Assembly – Right Rudder                                                          NM!
             B-A27-1                1        Cable Assembly – Left Rudder                                                           NM!
             D-26                   2        Link Connector                                                                         8.73
             A-245                  2        Bushing – Fibre – Rudder Control                                                       NM!
             AN3-6                  2        Bolt                                                                                   0.52
             AN320-3                2        Nut                                                                                      1
             AN380-2-2              2        Cotter Pin                                                                             0.04
             A-146                  14       Bushing – Cable Fair leads (Round – Glue In)                                           NM!
             B-154                  2        Guide – Rudder Cable Fairlead – Left Side                                              NM!
             B-155                  2        Guide – 3 Cable Fairlead – Right Side                                                  NM!
             AN3-7                  8        Bolt                                                                                     1
             AN320-3                8        Nut                                                                                      1
             AN380-2-2              8        Cotter Pin                                                                             0.04
             B-A28-1                1        Cable Assembly – Elevator Top                                                          NM!
