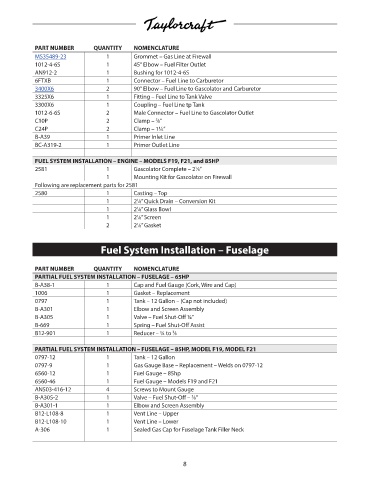

Page 12 - Taylorcraft Interactive Digital Parts Catalog

PART NUMBER QUANTITY NOMENCLATURE PRICE
MS35489-23 1 Grommet – Gas Line at Firewall 1.34
1012-4-6S 1 45° Elbow – Fuel Filter Outlet NM!
AN912-2 1 Bushing for 1012-4-6S NM!
6FTXB 1 Connector – Fuel Line to Carburetor NM!
3400X6 2 90° Elbow – Fuel Line to Gascolator and Carburetor 10.05
3325X6 1 Fitting – Fuel Line to Tank Valve NM!
3300X6 1 Coupling – Fuel Line tp Tank NM!
1012-6-6S 2 Male Connector – Fuel Line to Gascolator Outlet NM!
C10P 2 Clamp – ⁄8” NM!
5
C24P 2 Clamp – 1¼” NM!
B-A39 1 Primer Inlet Line NM!
BC-A319-2 1 Primer Outlet Line NM!
x
FUEL SYSTEM INSTALLATION – ENGINE – MODELS F19, F21, and 85HP
1
2581 1 Gascolator Complete – 2 ⁄8” NM!
1 Mounting Kit for Gascolator on Firewall x
Following are replacement parts for 2581
2580 1 Casting – Top NM!
1
1 2 ⁄8” Quick Drain – Conversion Kit x
1 2 ⁄8” Glass Bowl x
1
1 2 ⁄8” Screen x
1
2 2 ⁄8” Gasket x
1
Fuel System Installation – Fuselage

PART NUMBER QUANTITY NOMENCLATURE PRICE
PARTIAL FUEL SYSTEM INSTALLATION – FUSELAGE – 65HP
B-A38-1 1 Cap and Fuel Gauge (Cork, Wire and Cap) NM!
1006 1 Gasket – Replacement NM!
0797 1 Tank – 12 Gallon – (Cap not included) NM!
B-A301 1 Elbow and Screen Assembly NM!
B-A305 1 Valve – Fuel Shut-Off ¼” NM!
B-669 1 Spring – Fuel Shut-Off Assist NM!
B12-901 1 Reducer – ¼ to ⁄8 NM!
3
x
PARTIAL FUEL SYSTEM INSTALLATION – FUSELAGE – 85HP, MODEL F19, MODEL F21
0797-12 1 Tank – 12 Gallon NM!
0797-9 1 Gas Gauge Base – Replacement – Welds on 0797-12 NM!
6560-12 1 Fuel Gauge – 85hp NM!
6560-46 1 Fuel Gauge – Models F19 and F21 NM!
AN503-416-12 4 Screws to Mount Gauge NM!
3
B-A305-2 1 Valve – Fuel Shut-Off – ⁄8” NM!
B-A301-1 1 Elbow and Screen Assembly NM!
B12-L108-8 1 Vent Line – Upper NM!
B12-L108-10 1 Vent Line – Lower NM!
A-306 1 Sealed Gas Cap for Fuselage Tank Filler Neck NM!
x
