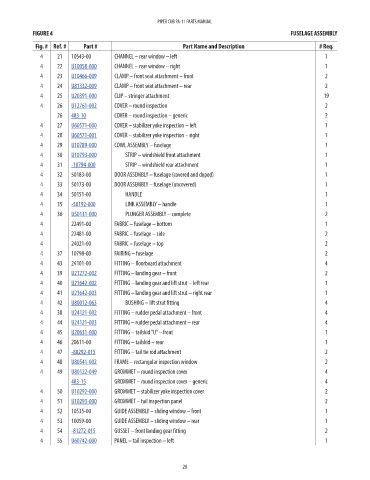

PIPER CUB PA-11 PARTS MANUAL
FIGURE 4 FUSELAGE ASSEMBLY

Fig. # Ref. # Part # Part Name and Description # Req. Price
4 21 10543-00 CHANNEL – rear window – left 1 NM!
4 22 U10058-000 CHANNEL – rear window – right 1 139.81
4 23 U10466-009 CLAMP – front seat attachment – front 2 61.44
4 24 U81332-009 CLAMP – front seat attachment – rear 2 24.65
4 25 U20391-000 CLIP – stringer attachment 19 3.84
4 26 U12761-002 COVER – round inspection 2 51.66
26 483-10 COVER – round inspection – generic 2 2.58
4 27 U60571-000 COVER – stabilizer yoke inspection – left 1 29.46
4 28 U60571-001 COVER – stabilizer yoke inspection – right 1 29.46
4 29 U10789-000 COWL ASSEMBLY – fuselage 1 1560.97
4 30 U10793-000 STRIP – windshield front attachment 1 149.65
4 31 -10794-000 STRIP – windshield rear attachment 1 99.99
4 32 50183-00 DOOR ASSEMBLY – fuselage (covered and doped) 1 NM!
4 33 50173-00 DOOR ASSEMBLY – fuselage (uncovered) 1 NM!
4 34 50151-00 HANDLE 1 NM!
4 35 -50192-000 LINK ASSEMBLY – handle 1 92.14
4 36 U50131-000 PLUNGER ASSEMBLY – complete 2 96.34
4 22491-00 FABRIC – fuselage – bottom 1 NM!
4 22481-00 FABRIC – fuselage – side 2 NM!
4 24021-00 FABRIC – fuselage – top 2 NM!
4 37 10798-00 FAIRING – fuselage 2 NM!

4 43 24101-00 FITTING – floorboard attachment 4 NM!
4 39 U21272-002 FITTING – landing gear – front 2 195.80
4 40 U21642-002 FITTING – landing gear and lift strut – left rear 1 277.59
4 41 U21642-003 FITTING – landing gear and lift strut – right rear 1 345.49
4 42 U80012-063 BUSHING – lift strut fitting 4 9.29
4 38 U24121-002 FITTING – rudder pedal attachment – front 4 9.08
4 44 U24121-003 FITTING – rudder pedal attachment – rear 4 9.08
4 45 U20631-000 FITTING – tailskid “U” – front 1 48.16
4 46 20611-00 FITTING – tailskid – rear 1 NM!
4 47 -80292-015 FITTING – tail tie rod attachment 2 20.41
4 48 U80541-002 FRAME – rectangular inspection window 2 16.33
4 49 U80122-049 GROMMET – round inspection cover 4 6.28
483-15 GROMMET – round inspection cover – generic 4 2.04
4 50 U10292-000 GROMMET – stabilizer yoke inspection cover 2 14.33
4 51 U10293-000 GROMMET – tail inspection panel 2 11.81
4 52 10535-00 GUIDE ASSEMBLY – sliding window – front 1 NM!
4 53 10059-00 GUIDE ASSEMBLY – sliding window – rear 1 NM!
4 54 81272-15 GUSSET – front landing gear fitting 2 NM!
4 55 U60742-000 PANEL – tail inspection – left 1 42.37

20
