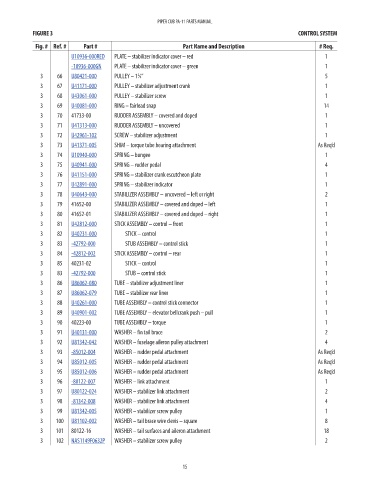

PIPER CUB PA-11 PARTS MANUAL
            FIGURE 3                                                                                CONTROL SYSTEM

             Fig. # Ref. #   Part #                           Part Name and Description                    # Req.                     Price
                         U10936-000RED  PLATE – stabilizer indicator cover – red                             1                    79.66
                         -10936-000GN  PLATE – stabilizer indicator cover – green                            1                    75.77
              3     66   U80421-000    PULLEY – 1 ⁄4”                                                        5                    16.17
                                               3
              3     67   U41171-000    PULLEY – stabilizer adjustment crank                                  1                    91.20
              3     68   U43061-000    PULLEY – stabilizer screw                                             1                    132.70
              3     69   U40081-000    RING – fairlead snap                                                 14                    0.54
              3     70   41733-00      RUDDER ASSEMBLY – covered and doped                                   1                    NM!
              3     71   U41313-000    RUDDER ASSEMBLY – uncovered                                           1                    873.03
              3     72   U42961-102    SCREW – stabilizer adjustment                                         1                    128.23
              3     73   U41371-005    SHIM – torque tube bearing attachment                              As Req’d                13.14
              3     74   U10940-000    SPRING – bungee                                                       1                    37.01
              3     75   U40941-000    SPRING – rudder pedal                                                 4                    12.47
              3     76   U41151-000    SPRING – stabilizer crank escutcheon plate                            1                    14.78
              3     77   U42891-000    SPRING – stabilizer indicator                                         1                    8.31
              3     78   U40643-000    STABILIZER ASSEMBLY – uncovered – left or right                       2                    875.23
              3     79   41652-00      STABILIZER ASSEMBLY – covered and doped – left                        1                    NM!
              3     80   41652-01      STABILIZER ASSEMBLY – covered and doped – right                       1                    NM!
              3     81   U42812-000    STICK ASSEMBLY – control – front                                      1                    624.06
              3     82   U40231-000       STICK – control                                                    1                    137.59
              3     83   -42792-000       STUB ASSEMBLY – control stick                                      1                    439.68
              3     84   -42812-002    STICK ASSEMBLY – control – rear                                       1                    624.06

              3     85   40231-02         STICK – control                                                    1                    NM!
              3     83   -42792-000       STUB – control stick                                               1                    439.68
              3     86   U86062-080    TUBE – stabilizer adjustment liner                                    1                    142.85
              3     87   U86062-079    TUBE – stabilizer rear liner                                          1                    107.66
              3     88   U40261-000    TUBE ASSEMBLY – control stick connector                               1                    262.78
              3     89   U40901-002    TUBE ASSEMBLY – elevator bellcrank push – pull                        1                    595.47
              3     90   40223-00      TUBE ASSEMBLY – torque                                                1                    NM!
              3     91   U40131-000    WASHER – fin tail brace                                               2                    10.08
              3     92   U81342-042    WASHER – fuselage aileron pulley attachment                           4                    3.47
              3     93   -85012-004    WASHER – rudder pedal attachment                                   As Req’d                2.63
              3     94   U85012-005    WASHER – rudder pedal attachment                                   As Req’d                2.74
              3     95   U85012-006    WASHER – rudder pedal attachment                                   As Req’d                3.68
              3     96   -80122-007    WASHER – link attachment                                              1                    9.53
              3     97   U80122-024    WASHER – stabilizer link attachment                                   2                    4.61
              3     98   U81342-008    WASHER – stabilizer link attachment                                   4                    5.74
              3     99   U81342-005    WASHER – stabilizer screw pulley                                      1                    10.26
              3     100  U81102-002    WASHER – tail brace wire clevis – square                              8                    6.74
              3     101  U80122-086    WASHER – tail surfaces and aileron attachment                        18                    2.71
              3     102  NAS1149F0632P  WASHER – stabilizer screw pulley                                     2                    0.06
