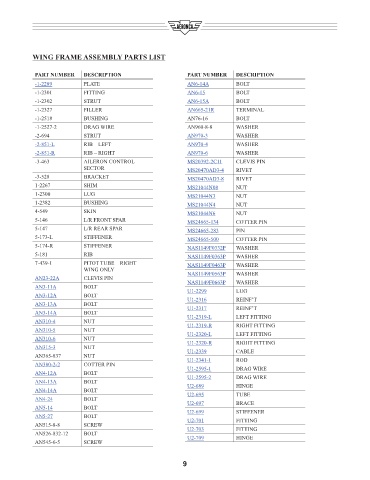

WING FRAME ASSEMBLY PARTS LIST

PART NUMBER DESCRIPTION PART NUMBER DESCRIPTION
-1-2289 PLATE AN6-14A BOLT
-1-2301 FITTING AN6-15 BOLT
-1-2302 STRUT AN6-15A BOLT
-1-2327 FILLER AN665-21R TERMINAL
-1-2518 BUSHING AN76-16 BOLT
-1-2527-2 DRAG WIRE AN960-8-8 WASHER
-2-694 STRUT AN970-3 WASHER
-2-851-L RIB – LEFT AN970-4 WASHER
-2-851-R RIB – RIGHT AN970-6 WASHER
-3-463 AILERON CONTROL MS20392-2C11 CLEVIS PIN
SECTOR MS20470AD3-4 RIVET
-3-528 BRACKET MS20470AD3-8 RIVET
1-2267 SHIM MS21044N08 NUT
1-2300 LUG MS21044N3 NUT
1-2382 BUSHING MS21044N4 NUT
4-549 SKIN MS21044N6 NUT
5-146 L/R FRONT SPAR MS24665-134 COTTER PIN
5-147 L/R REAR SPAR MS24665-283 PIN
5-173-L STIFFENER MS24665-500 COTTER PIN
5-174-R STIFFENER NAS1149F0332P WASHER
5-181 RIB NAS1149F0363P WASHER
7-439-1 PITOT TUBE – RIGHT NAS1149F0463P WASHER
WING ONLY
AN23-22A CLEVIS PIN NAS1149F0563P WASHER
WASHER
NAS1149F0663P
AN3-11A BOLT U1-2299 LUG
AN3-12A BOLT U1-2316 REINF’T
AN3-13A BOLT U1-2317 REINF’T
AN3-14A BOLT U1-2319-L LEFT FITTING
AN310-4 NUT U1-2319-R RIGHT FITTING
AN310-5 NUT U1-2320-L LEFT FITTING
AN310-6 NUT U1-2320-R RIGHT FITTING
AN315-3 NUT U1-2339 CABLE
AN365-837 NUT U1-2341-1 ROD
AN380-2-2 COTTER PIN U1-2595-1 DRAG WIRE
AN4-12A BOLT U1-2595-2 DRAG WIRE
AN4-13A BOLT U2-689 HINGE
AN4-14A BOLT U2-695 TUBE
AN4-24 BOLT U2-697 BRACE
AN5-14 BOLT U2-699 STIFFENER
AN5-27 BOLT U2-701 FITTING
AN515-8-8 SCREW U2-703 FITTING
AN526-832-12 BOLT U2-709 HINGE
AN545-6-5 SCREW
