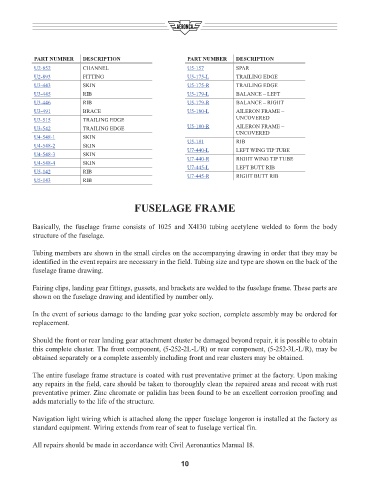

PART NUMBER     DESCRIPTION                        PART NUMBER     DESCRIPTION
            U2-852          CHANNEL                            U5-157          SPAR
            U2-893          FITTING                            U5-175-L        TRAILING EDGE
            U3-443          SKIN                               U5-175-R        TRAILING EDGE
            U3-445          RIB                                U5-179-L        BALANCE – LEFT
            U3-446          RIB                                U5-179-R        BALANCE – RIGHT
            U3-491          BRACE                              U5-180-L        AILERON FRAME –
            U3-515          TRAILING EDGE                                      UNCOVERED
            U3-542          TRAILING EDGE                      U5-180-R        AILERON FRAME –
                                                                               UNCOVERED
            U4-548-1        SKIN                               U5-181          RIB
            U4-548-2        SKIN
            U4-548-3        SKIN                               U7-440-L        LEFT WING TIP TUBE
                                                                               RIGHT WING TIP TUBE
                                                               U7-440-R
            U4-548-4        SKIN                               U7-445-L        LEFT BUTT RIB
            U5-142          RIB                                U7-445-R        RIGHT BUTT RIB
            U5-143          RIB



                                             FUSELAGE FRAME



            Basically, the fuselage frame consists of 1025 and X4130 tubing acetylene welded to form the body
            structure of the fuselage.

            Tubing members are shown in the small circles on the accompanying drawing in order that they may be
            identified in the event repairs are necessary in the field. Tubing size and type are shown on the back of the
            fuselage frame drawing.

            Fairing clips, landing gear fittings, gussets, and brackets are welded to the fuselage frame. These parts are
            shown on the fuselage drawing and identified by number only.


            In the event of serious damage to the landing gear yoke section, complete assembly may be ordered for
            replacement.

            Should the front or rear landing gear attachment cluster be damaged beyond repair, it is possible to obtain
            this complete cluster. The front component, (5-252-2L-L/R) or rear component, (5-252-3L-L/R), may be
            obtained separately or a complete assembly including front and rear clusters may be obtained.

            The entire fuselage frame structure is coated with rust preventative primer at the factory. Upon making
            any repairs in the field, care should be taken to thoroughly clean the repaired areas and recoat with rust
            preventative primer. Zinc chromate or palidin has been found to be an excellent corrosion proofing and
            adds materially to the life of the structure.

            Navigation light wiring which is attached along the upper fuselage longeron is installed at the factory as
            standard equipment. Wiring extends from rear of seat to fuselage vertical fin.


            All repairs should be made in accordance with Civil Aeronautics Manual 18.
