Page 16 - Piper PA-15/PA-17 Parts Catalog
P. 16

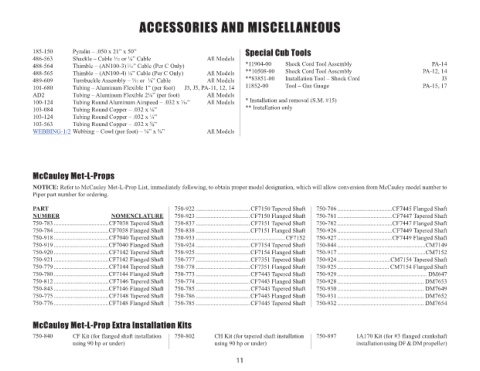

ACCESSORIES AND MISCELLANEOUS
185-150 Pyralin – .050 x 21” x 50” Special Cub Tools
486-563 Shackle – Cable ⁄32 or ⅛” Cable All Models
3
488-564 Thimble – (AN100-3) ⁄16” Cable (Per C Only) *11904-00 Shock Cord Tool Assembly PA-14
l
488-565 Thimble – (AN100-4) ⅛” Cable (Per C Only) All Models **10508-00 Shock Cord Tool Assembly PA-12, 14
489-609 Turnbuckle Assembly – ⁄32 or ⅛” Cable All Models **83851-00 Installation Tool – Shock Cord J3
3
101-680 Tubing – Aluminum Flexible 1” (per foot) J3, J5, PA-11, 12, 14 11852-00 Tool – Gas Gauge PA-15, 17
AD2 Tubing – Aluminum Flexible 2⅛” (per foot) All Models
100-124 Tubing Round Aluminum Airspeed – .032 x ⁄16” All Models * Installation and removal (S.M. #15)
3
103-084 Tubing Round Copper – .032 x ⅛” ** Installation only
103-124 Tubing Round Copper – .032 x ¼”
103-563 Tubing Round Copper – .032 x ⅝”
WEBBING-1/2 Webbing – Cowl (per foot) – ⅛” x ⅝” All Models
McCauley Met-L-Props
NOTICE: Refer to McCauley Met-L-Prop List, immediately following, to obtain proper model designation, which will allow conversion from McCauley model number to
Piper part number for ordering.
PART 750-922 ....................................CF7150 Tapered Shaft 750-786 ....................................CF7445 Flanged Shaft
NUMBER NOMENCLATURE 750-923 ....................................CF7150 Flanged Shaft 750-781 ....................................CF7447 Tapered Shaft
750-783 ....................................CF7038 Tapered Shaft 750-837 ....................................CF7151 Tapered Shaft 750-782 ....................................CF7447 Flanged Shaft
750-784 ....................................CF7038 Flanged Shaft 750-838 ....................................CF7151 Flanged Shaft 750-926 ....................................CF7449 Tapered Shaft
750-918 ....................................CF7040 Tapered Shaft 750-933 ...........................................................CF7152 750-927 ....................................CF7449 Flanged Shaft
750-919 ....................................CF7040 Flanged Shaft 750-924 ....................................CF7154 Tapered Shaft 750-844 ..........................................................CM7149
750-920 ....................................CF7142 Tapered Shaft 750-925 ....................................CF7154 Flanged Shaft 750-917 ..........................................................CM7152
750-921 ....................................CF7142 Flanged Shaft 750-777 ....................................CF7351 Tapered Shaft 750-924 ...................................CM7154 Tapered Shaft
750-779 ....................................CF7144 Tapered Shaft 750-778 ....................................CF7351 Flanged Shaft 750-925 .................................. CM7154 Flanged Shaft
750-780 ....................................CF7144 Flanged Shaft 750-773 ....................................CF7443 Tapered Shaft 750-929 ........................................................... DM647
750-812 ....................................CF7146 Tapered Shaft 750-774 ....................................CF7443 Flanged Shaft 750-928 ......................................................... DM7653
750-843 ....................................CF7146 Flanged Shaft 750-785 ....................................CF7443 Tapered Shaft 750-930 ......................................................... DM7649
750-775 ....................................CF7148 Tapered Shaft 750-786 ....................................CF7443 Flanged Shaft 750-931 ......................................................... DM7652
750-776 ....................................CF7148 Flanged Shaft 750-785 ....................................CF7445 Tapered Shaft 750-932 ......................................................... DM7654
McCauley Met-L-Prop Extra Installation Kits
750-840 CF Kit (for flanged shaft installation 750-802 CH Kit (for tapered shaft installation 750-897 1A170 Kit (for #3 flanged crankshaft
using 90 hp or under) using 90 hp or under) installation using DF & DM propeller)
11
