Page 12 - Piper PA-15/PA-17 Parts Catalog

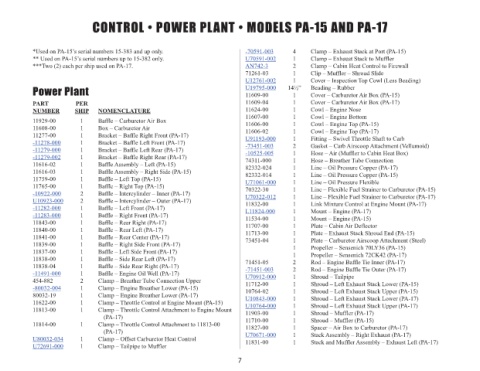

CONTROL • POWER PLANT • MODELS PA-15 AND PA-17

*Used on PA-15’s serial numbers 15-383 and up only. -70591-003 4 Clamp – Exhaust Stack at Port (PA-15)
** Used on PA-15’s serial numbers up to 15-382 only. U70591-002 1 Clamp – Exhaust Stack to Muffler
***Two (2) each per ship used on PA-17. AN742-3 2 Clamp – Cabin Heat Control to Firewall
71261-03 1 Clip – Muffler – Shroud Slide
U12761-002 1 Cover – Inspection Top Cowl (Less Beading)
Power Plant U19795-000 14½” Beading – Rubber
11609-00
1
Cover – Carburetor Air Box (PA-15)
PART PER 11609-04 1 Cover – Carburetor Air Box (PA-17)
NUMBER SHIP NOMENCLATURE 11624-00 1 Cowl – Engine Nose
11929-00 1 Baffle – Carburetor Air Box 11607-00 1 Cowl – Engine Bottom
1
11606-00
Cowl – Engine Top (PA-15)
11608-00 1 Box – Carburetor Air 11606-02 1 Cowl – Engine Top (PA-17)
11277-00 1 Bracket – Baffle Right Front (PA-17) U91193-000 1 Fitting – Swivel Throttle Shaft to Carb
-11278-000 1 Bracket – Baffle Left Front (PA-17) -73451-003 2 Gasket – Carb Airscoop Attachment (Vellumoid)
-11279-000 1 Bracket – Baffle Left Rear (PA-17) -10525-005 1 Hose – Air (Muffler to Cabin Heat Box)
-11279-002 1 Bracket – Baffle Right Rear (PA-17) 74311-000 1 Hose – Breather Tube Connection
11616-02 1 Baffle Assembly – Left (PA-15) 82332-024 1 Line – Oil Pressure Copper (PA-17)
11616-03 1 Baffle Assembly – Right Side (PA-15) 82332-014 1 Line – Oil Pressure Copper (PA-15)
11759-00 1 Baffle – Left Top (PA-15) U71061-000 1 Line – Oil Pressure Flexible
11765-00 1 Baffle – Right Top (PA-15) 70322-30 1 Line – Flexible Fuel Strainer to Carburetor (PA-15)
-10922-000 2 Baffle – Intercylinder – Inner (PA-17) U70322-012 1 Line – Flexible Fuel Strainer to Carburetor (PA-17)
U10923-000 2 Baffle – Intercylinder – Outer (PA-17) 11832-00 1 Link Mixture Control at Engine Mount (PA-17)
-11282-000 1 Baffle – Left Front (PA-17) L11824-000 1 Mount – Engine (PA-17)
-11283-000 1 Baffle – Right Front (PA-17) 11534-00 1 Mount – Engine (PA-15)
11843-00 1 Baffle – Rear Right (PA-17) 11707-00 1 Plate – Cabin Air Deflector
11840-00 1 Baffle – Rear Left (PA-17) 11713-00 1 Plate – Exhaust Stack Shroud End (PA-15)
11841-00 1 Baffle – Rear Center (PA-17) 73451-04 1 Plate – Carburetor Airscoop Attachment (Steel)
11839-00 1 Baffle – Right Side Front (PA-17) 1 Propeller – Sensenich 70LY36 (PA-15)
11837-00 1 Baffle – Left Side Front (PA-17) 1 Propeller – Sensenich 72CK42 (PA-17)
11838-00 1 Baffle – Side Rear Left (PA-17) 71451-05 2 Rod – Engine Baffle Tie Inner (PA-17)
11838-04 1 Baffle – Side Rear Right (PA-17) -71451-003 2 Rod – Engine Baffle Tie Outer (PA-17)
-11491-000 1 Baffle – Engine Oil Well (PA-17) U70912-000 1 Shroud – Tailpipe
454-882 2 Clamp – Breather Tube Connection Upper 11712-00 1 Shroud – Left Exhaust Stack Lower (PA-15)
-80032-004 1 Clamp – Engine Breather Lower (PA-15) 10764-02 1 Shroud – Left Exhaust Stack Upper (PA-15)
80032-19 1 Clamp – Engine Breather Lower (PA-17) U10843-000 1 Shroud – Left Exhaust Stack Lower (PA-17)
11622-00 1 Clamp – Throttle Control at Engine Mount (PA-15) U10764-000 1 Shroud – Left Exhaust Stack Upper (PA-17)
11813-00 1 Clamp – Throttle Control Attachment to Engine Mount 11903-00 1 Shroud – Muffler (PA-17)
(PA-17) 11710-00 1 Shroud – Muffler (PA-15)
11814-00 1 Clamp – Throttle Control Attachment to 11813-00 11827-00 1 Spacer – Air Box to Carburetor (PA-17)
(PA-17) U70671-000 1 Stack Assembly – Right Exhaust (PA-17)
U80032-034 1 Clamp – Offset Carburetor Heat Control 11831-00 1 Stack and Muffler Assembly – Exhaust Left (PA-17)
U72691-000 1 Clamp – Tailpipe to Muffler

7
