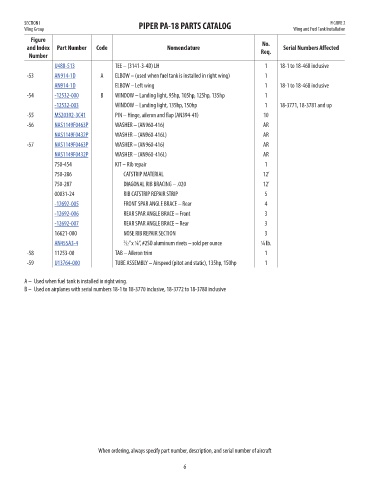

SECTION I PIPER PA-18 PARTS CATALOG FIGURE 2
Wing Group Wing and Fuel Tank Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
U488-513 TEE – (3141-3-4D) LH 1 18-1 to 18-468 inclusive 98.42
-53 AN914-1D A ELBOW – (used when fuel tank is installed in right wing) 1 25.00
AN914-1D ELBOW – Left wing 1 18-1 to 18-468 inclusive 25.00
-54 -12532-000 B WINDOW – Landing light, 95hp, 105hp, 125hp, 135hp 1 83.16
-12532-003 WINDOW – Landing light, 135hp, 150hp 1 18-3771, 18-3781 and up 103.95
-55 MS20392-3C41 PIN – Hinge, aileron and flap (AN394-41) 10 2.50
-56 NAS1149F0463P WASHER – (AN960-416) AR 0.06
NAS1149F0432P WASHER – (AN960-416L) AR 0.04
-57 NAS1149F0463P WASHER – (AN960-416) AR 0.06
NAS1149F0432P WASHER – (AN960-416L) AR 0.04
750-454 KIT – Rib repair 1 NM!
750-286 CATSTRlP MATERIAL 12’ NM!
750-287 DIAGONAL RIB BRACING – .020 12’ NM!
00031-24 RIB CATSTRlP REPAIR STRIP 5 NM!
-12692-005 FRONT SPAR ANGLE BRACE – Rear 4 11.66
-12692-006 REAR SPAR ANGLE BRACE – Front 3 12.13
-12692-007 REAR SPAR ANGLE BRACE – Rear 3 12.79
16621-000 NOSE RIB REPAIR SECTION 3 NM!
AN455A3-4 3 ⁄32” x ¼”, #2SO aluminum rivets – sold per ounce ¼ lb. 0.00
-58 11253-00 TAB – Aileron trim 1 NM!
-59 U13764-000 TUBE ASSEMBLY – Airspeed (pitot and static), 135hp, 150hp 1 217.47

A – Used when fuel tank is installed in right wing.
B – Used on airplanes with serial numbers 18-1 to 18-3770 inclusive, 18-3772 to 18-3780 inclusive

When ordering, always specify part number, description, and serial number of aircraft

6
