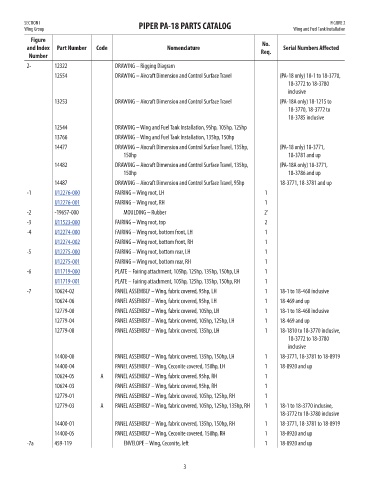

Page 13 - Piper PA-18 Super Cub Interactive Parts Catalog

SECTION I PIPER PA-18 PARTS CATALOG FIGURE 2
Wing Group Wing and Fuel Tank Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
2- 12322 DRAWING – Rigging Diagram NM!
12554 DRAWING – Aircraft Dimension and Control Surface Travel (PA-18 only) 18-1 to 18-3770, NM!
18-3772 to 18-3780
inclusive
13253 DRAWING – Aircraft Dimension and Control Surface Travel (PA-18A only) 18-1215 to NM!
18-3770, 18-3772 to
18-3785 inclusive
12544 DRAWING – Wing and Fuel Tank Installation, 95hp, 105hp, 125hp NM!

13766 DRAWING – Wing and Fuel Tank Installation, 135hp, 150hp NM!
14477 DRAWING – Aircraft Dimension and Control Surface Travel, 135hp, (PA-18 only) 18-3771, NM!
150hp 18-3781 and up
14482 DRAWING – Aircraft Dimension and Control Surface Travel, 135hp, (PA-18A only) 18-3771, NM!
150hp 18-3786 and up
14487 DRAWING – Aircraft Dimension and Control Surface Travel, 95hp 18-3771, 18-3781 and up NM!
-1 U12276-000 FAIRING – Wing root, LH 1 79.09
U12276-001 FAIRING – Wing root, RH 1 79.09
-2 -19657-000 MOULDING – Rubber 2’ NM!
-3 U11523-000 FAIRING – Wing root, top 2 80.72
-4 U12274-000 FAIRING – Wing root, bottom front, LH 1 68.33
U12274-002 FAIRING – Wing root, bottom front, RH 1 68.33
-5 U12275-000 FAIRING – Wing root, bottom rear, LH 1 76.94
U12275-001 FAIRING – Wing root, bottom rear, RH 1 76.94
-6 U11719-000 PLATE – Fairing attachment, 105hp, 125hp, 135hp, 150hp, LH 1 111.94
U11719-001 PLATE – Fairing attachment, 105hp, 125hp, 135hp, 150hp, RH 1 111.94
-7 10624-02 PANEL ASSEMBLY – Wing, fabric covered, 95hp, LH 1 18-1 to 18-468 inclusive NM!
10624-06 PANEL ASSEMBLY – Wing, fabric covered, 95hp, LH 1 18-469 and up NM!
12779-00 PANEL ASSEMBLY – Wing, fabric covered, 105hp, LH 1 18-1 to 18-468 inclusive NM!
12779-04 PANEL ASSEMBLY – Wing, fabric covered, 105hp, 125hp, LH 1 18-469 and up NM!
12779-08 PANEL ASSEMBLY – Wing, fabric covered, 135hp, LH 1 18-1810 to 18-3770 inclusive, NM!
18-3772 to 18-3780
inclusive
14400-00 PANEL ASSEMBLY – Wing, fabric covered, 135hp, 150hp, LH 1 18-3771, 18-3781 to 18-8919 NM!
14400-04 PANEL ASSEMBLY – Wing, Ceconite covered, 150hp, LH 1 18-8920 and up NM!
10624-05 A PANEL ASSEMBLY – Wing, fabric covered, 95hp, RH 1 NM!
10624-03 PANEL ASSEMBLY – Wing, fabric covered, 95hp, RH 1 NM!
12779-01 PANEL ASSEMBLY – Wing, fabric covered, 105hp, 125hp, RH 1 NM!
12779-03 A PANEL ASSEMBLY – Wing, fabric covered, 105hp, 125hp, 135hp, RH 1 18-1 to 18-3770 inclusive, NM!
18-3772 to 18-3780 inclusive
14400-01 PANEL ASSEMBLY – Wing, fabric covered, 135hp, 150hp, RH 1 18-3771, 18-3781 to 18-8919 NM!
14400-05 PANEL ASSEMBLY – Wing, Ceconite covered, 150hp, RH 1 18-8920 and up NM!

-7a 459-119 ENVELOPE – Wing, Ceconite, left 1 18-8920 and up NM!

3
