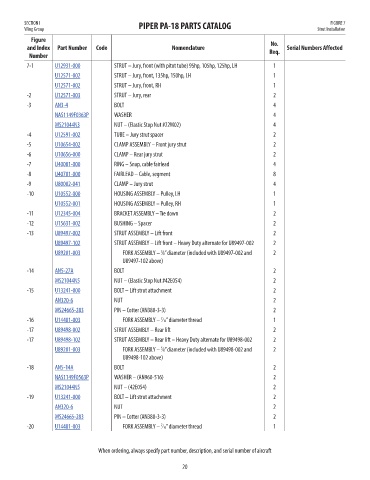

SECTION I PIPER PA-18 PARTS CATALOG FIGURE 7
Wing Group Strut Installation
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
7-1 U12931-000 STRUT – Jury, front (with pitot tube) 95hp, 105hp, 125hp, LH 1 295.47
U12571-002 STRUT – Jury, front, 135hp, 150hp, LH 1 142.82
U12571-002 STRUT – Jury, front, RH 1 142.82
-2 U12571-003 STRUT – Jury, rear 2 142.82
-3 AN3-4 BOLT 4 1.00
NAS1149F0363P WASHER 4 0.08
MS21044N3 NUT – (Elastic Stop Nut #22M02) 4 0.51
-4 U12591-002 TUBE – Jury strut spacer 2 94.76
-5 U10654-002 CLAMP ASSEMBLY – Front jury strut 2 73.00
-6 U10656-000 CLAMP – Rear jury strut 2 39.84
-7 U40081-000 RING – Snap, cable fairlead 4 0.54
-8 U40701-000 FAIRLEAD – Cable, segment 8 1.44
-9 U80002-041 CLAMP – Jury strut 4 24.59
-10 U10552-000 HOUSING ASSEMBLY – Pulley, LH 1 76.15
U10552-001 HOUSING ASSEMBLY – Pulley, RH 1 76.15
-11 U12345-004 BRACKET ASSEMBLY – Tie down 2 70.31
-12 U15631-002 BUSHING – Spacer 2 20.01
-13 U89497-002 STRUT ASSEMBLY – Lift front 2 776.09
U89497-102 STRUT ASSEMBLY – Lift front – Heavy Duty alternate for U89497-002 2 938.40
U89201-003 FORK ASSEMBLY – ⁄8” diameter (included with U89497-002 and 2 164.19
5
U89497-102 above)
-14 AN5-27A BOLT 2 1.91
MS21044N5 NUT – (Elastic Stop Nut #42E054) 2 0.50
-15 U13241-000 BOLT – Lift strut attachment 2 19.20
AN320-6 NUT 2 1.00
MS24665-283 PIN – Cotter (AN380-3-3) 2 0.14
-16 U14481-003 FORK ASSEMBLY – ⁄16” diameter thread 1 130.37
7
-17 U89498-002 STRUT ASSEMBLY – Rear lift 2 776.09
-17 U89498-102 STRUT ASSEMBLY – Rear lift – Heavy Duty alternate for U89498-002 2 885.10
U89201-003 FORK ASSEMBLY – ⁄8” diameter (included with U89498-002 and 2 164.19
5
U89498-102 above)
-18 AN5-14A BOLT 2 0.58
NAS1149F0563P WASHER – (AN960-516) 2 0.18
MS21044N5 NUT – (42E054) 2 0.50
-19 U13241-000 BOLT – Lift strut attachment 2 19.20
AN320-6 NUT 2 1.00
MS24665-283 PIN – Cotter (AN380-3-3) 2 0.14
7
-20 U14481-003 FORK ASSEMBLY – ⁄16” diameter thread 1 130.37

When ordering, always specify part number, description, and serial number of aircraft
