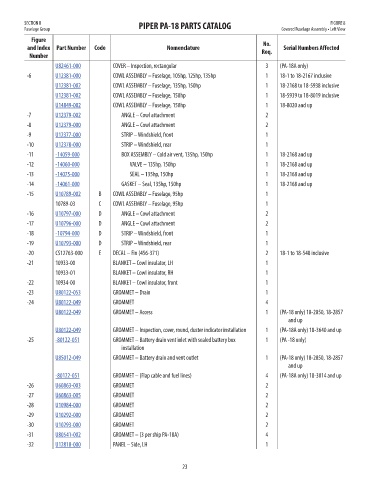

SECTION II PIPER PA-18 PARTS CATALOG FIGURE 8
Fuselage Group Covered Fuselage Assembly • Left View
Figure
No.
and Index Part Number Code Nomenclature Req. Serial Numbers Affected Price
Number
U82461-000 COVER – Inspection, rectangular 3 (PA-18A only) 19.87
-6 U12381-000 COWL ASSEMBLY – Fuselage, 105hp, 125hp, 135hp 1 18-1 to 18-2167 inclusive 1888.89
U12381-002 COWL ASSEMBLY – Fuselage, 135hp, 150hp 1 18-2168 to 18-5938 inclusive 1899.35
U12381-002 COWL ASSEMBLY – Fuselage, 150hp 1 18-5939 to 18-8019 inclusive 1899.35
U14849-002 COWL ASSEMBLY – Fuselage, 150hp 1 18-8020 and up 2029.92
-7 U12379-002 ANGLE – Cowl attachment 2 15.76
-8 U12379-000 ANGLE – Cowl attachment 2 15.77
-9 U12377-000 STRIP – Windshield, front 1 178.28
-10 U12378-000 STRIP – Windshield, rear 1 171.76
-11 -14059-000 BOX ASSEMBLY – Cold air vent, 135hp, 150hp 1 18-2168 and up 813.20
-12 -14060-000 VALVE – 135hp, 150hp 1 18-2168 and up 355.37
-13 -14075-000 SEAL – 135hp, 150hp 1 18-2168 and up 7.79
-14 -14061-000 GASKET – Seal, 135hp, 150hp 1 18-2168 and up 4.20
-15 U10789-002 B COWL ASSEMBLY – Fuselage, 95hp 1 1852.59
10789-03 C COWL ASSEMBLY – Fuselage, 95hp 1 NM!
-16 U10797-000 D ANGLE – Cowl attachment 2 50.77
-17 U10796-000 D ANGLE – Cowl attachment 2 40.18
-18 -10794-000 D STRIP – Windshield, front 1 99.99
-19 U10793-000 D STRIP – Windshield, rear 1 149.65
-20 CS12763-000 E DECAL – Fin (456-371) 2 18-1 to 18-548 inclusive NM!
-21 10933-00 BLANKET – Cowl insulator, LH 1 NM!
10933-01 BLANKET – Cowl insulator, RH 1 NM!
-22 10934-00 BLANKET – Cowl insulator, front 1 NM!

-23 U80122-053 GROMMET – Drain 1 4.52
-24 U80122-049 GROMMET 4 6.28
U80122-049 GROMMET – Access 1 (PA-18 only) 18-2850, 18-2857 6.28
and up
U80122-049 GROMMET – Inspection, cover, round, duster indicator installation 1 (PA-18A only) 18-3640 and up 6.28
-25 -80122-051 GROMMET – Battery drain vent inlet with sealed battery box 1 (PA -18 only) 4.37
installation
U85012-049 GROMMET – Battery drain and vent outlet 1 (PA-18 only) 18-2850, 18-2857 5.63
and up
-80122-051 GROMMET – (Flap cable and fuel lines) 4 (PA-18A only) 18-3014 and up 4.37
-26 U60863-003 GROMMET 2 4.57
-27 U60863-005 GROMMET 2 10.12
-28 U10984-000 GROMMET 2 20.62
-29 U10292-000 GROMMET 2 14.33
-30 U10293-000 GROMMET 2 11.81
-31 U80541-002 GROMMET – (3 per ship PA-18A) 4 16.33
-32 U12818-000 PANEL – Side, LH 1 95.19

23
