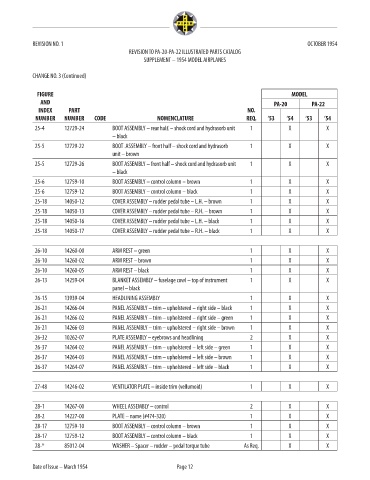

REVISION NO. 1 OCTOBER 1954
REVISION TO PA-20-PA-22 ILLUSTRATED PARTS CATALOG
SUPPLEMENT – 1954 MODEL AIRPLANES

CHANGE NO. 3 (Continued)

FIGURE MODEL
AND PA-20 PA-22
INDEX PART NO.
NUMBER NUMBER CODE NOMENCLATURE REQ. ‘53 ‘54 ‘53 ‘54
25-4 12729-24 BOOT ASSEMBLY – rear hal£ – shock cord and hydrasorb unit 1 X X
– black
25-5 12729-22 BOOT .ASSEMBLY – front half – shock cord and hydrasorb 1 X X
unit – brown
25-5 12729-26 BOOT ASSEMBLY – front half – shock cord and hydrasorb unit 1 X X
– black
25-6 12759-10 BOOT ASSEMBLY – control column – brown 1 X X
25-6 12759-12 BOOT ASSEMBLY – control column – black 1 X X
25-18 14050-12 COVER ASSEMBLY – rudder pedal tube – L.H. – brown 1 X X
25-18 14050-13 COVER ASSEMBLY – rudder pedal tube – R.H. – brown 1 X X
25-18 14050-16 COVER ASSEMBLY – rudder pedal tube – L.H. – black 1 X X
25-18 14050-17 COVER ASSEMBLY – rudder pedal tube – R.H. – black 1 X X

26-10 14260-00 ARM REST – green 1 X X
26-10 14260-02 ARM REST – brown 1 X X
26-10 14260-05 ARM REST – black 1 X X
26-13 14259-04 BLANKET ASSEMBLY – fuselage cowl – top of instrument 1 X X
panel – black
26-15 13939-04 HEADLINING ASSEMBLY 1 X X
26-21 14266-04 PANEL ASSEMBLY – trim – upholstered – right side – black 1 X X
26-21 14266-02 PANEL ASSEMBLY – trim – upholstered – right side – green 1 X X
26-21 14266-03 PANEL ASSEMBLY – trim – upholstered – right side – brown 1 X X
26-32 10262-07 PLATE ASSEMBLY – eyebrows and headlining 2 X X
26-37 14264-02 PANEL ASSEMBLY – trim – upholstered – left side – green 1 X X
26-37 14264-03 PANEL ASSEMBLY – trim – upholstered – left side – brown 1 X X
26-37 14264-07 PANEL ASSEMBLY – trim – upholstered – left side – black 1 X X

27-48 14246-02 VENTILATOR PLATE – inside trim (vellumoid) 1 X X

28-1 14267-00 WHEEL ASSEMBLY – control 2 X X
28-2 14227-00 PLATE – name (#474-320) 1 X X
28-17 12759-10 BOOT ASSEMBLY – control column – brown 1 X X
28-17 12759-12 BOOT ASSEMBLY – control column – black 1 X X
28-* 85012-04 WASHER – Spacer – rudder – pedal torque tube As Req. X X

Date of Issue – March 1954 Page 12
