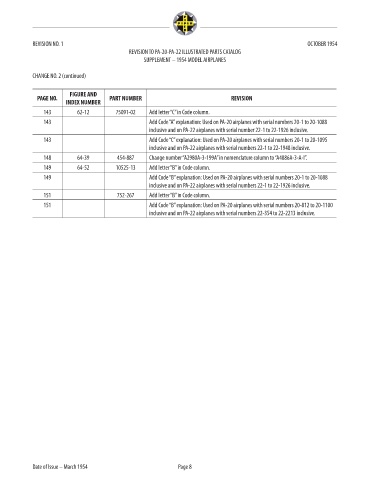

Page 10 - Piper PA-20 Interactive Digital Parts Catalog

REVISION NO. 1 OCTOBER 1954
REVISION TO PA-20-PA-22 ILLUSTRATED PARTS CATALOG
SUPPLEMENT – 1954 MODEL AIRPLANES

CHANGE NO. 2 (continued)

FIGURE AND
PAGE NO. PART NUMBER REVISION
INDEX NUMBER
143 62-12 75091-02 Add letter “C” in Code column.
143 Add Code “A” explanation: Used on PA-20 airplanes with serial numbers 20-1 to 20-1088
inclusive and on PA-22 airplanes with serial number 22-1 to 22-1926 inclusive.
143 Add Code “C” explanation: Used on PA-20 airplanes with serial numbers 20-1 to 20-1095
inclusive and on PA-22 airplanes with serial numbers 22-1 to 22-1948 inclusive.
148 64-39 454-887 Change number “A2980A-3-199A” in nomenclature column to “A4886A-3-A-l”.
149 64-52 10525-13 Add letter “B” in Code column.
149 Add Code “B” explanation: Used on PA-20 airplanes with serial numbers 20-1 to 20-1088
inclusive and on PA-22 airplanes with serial numbers 22-1 to 22-1926 inclusive.
151 752-267 Add letter “B” in Code column.

151 Add Code “B” explanation: Used on PA-20 airplanes with serial numbers 20-812 to 20-1100
inclusive and on PA-22 airplanes with serial numbers 22-354 to 22-2213 inclusive.

Date of Issue – March 1954 Page 8
