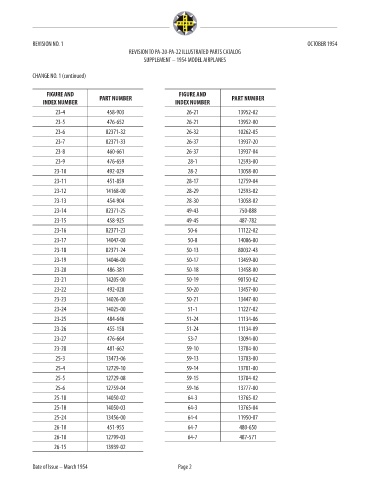

REVISION NO. 1 OCTOBER 1954
REVISION TO PA-20-PA-22 ILLUSTRATED PARTS CATALOG
SUPPLEMENT – 1954 MODEL AIRPLANES

CHANGE NO. 1 (continued)

FIGURE AND FIGURE AND
INDEX NUMBER PART NUMBER INDEX NUMBER PART NUMBER
23-4 458-903 26-21 13952-02
23-5 476-652 26-21 13952-00
23-6 82371-32 26-32 10262-05
23-7 82371-33 26-37 13937-20
23-8 460-661 26-37 13937-04
23-9 476-659 28-1 12593-00
23-10 492-029 28-2 13058-00
23-11 451-859 28-17 12759-04
23-12 14168-00 28-29 12593-02
23-13 454-904 28-30 13058-02

23-14 82371-25 49-43 750-888
23-15 458-925 49-45 487-782
23-16 82371-23 50-6 11122-02
23-17 14047-00 50-8 14086-00
23-18 82371-24 50-13 80032-43
23-19 14046-00 50-17 13459-00
23-20 486-381 50-18 13458-00
23-21 14205-00 50-19 90150-02
23-22 492-028 50-20 13457-00
23-23 14026-00 50-21 13447-00
23-24 14025-00 51-1 11227-02
23-25 484-646 51-24 11134-06
23-26 455-158 51-24 11134-09
23-27 476-664 53-7 13094-00
23-28 481-662 59-10 13784-00
25-3 13473-06 59-13 13783-00
25-4 12729-10 59-14 13781-00
25-5 12729-08 59-15 13784-02
25-6 12759-04 59-16 13777-00
25-18 14050-02 64-3 13765-02
25-18 14050-03 64-3 13765-04
25-24 13456-00 64-4 11950-07
26-10 451-955 64-7 480-650
26-10 12799-03 64-7 487-571
26-15 13939-02

Date of Issue – March 1954 Page 2
