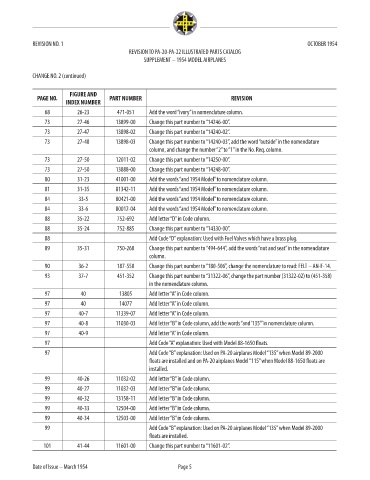

REVISION NO. 1 OCTOBER 1954
REVISION TO PA-20-PA-22 ILLUSTRATED PARTS CATALOG
SUPPLEMENT – 1954 MODEL AIRPLANES

CHANGE NO. 2 (continued)

FIGURE AND
PAGE NO. PART NUMBER REVISION
INDEX NUMBER
68 26-23 471-051 Add the word “ivory” in nomenclature column.
73 27-46 13899-00 Change this part number to “14246-00”.
73 27-47 13898-02 Change this part number to “14240-02”.
73 27-48 13898-03 Change this part number to “14240-03”, add the word “outside” in the nomenclature
column, and change the number “2” to “1” in the No. Req. column.
73 27-50 12011-02 Change this part number to “14250-00”.
73 27-50 13888-00 Change this part number to “14248-00”.
80 31-23 41001-00 Add the words “and 1954 Model” to nomenclature column.
81 31-35 81342-11 Add the words “and 1954 Model” to nomenclature column.
84 33-5 80421-00 Add the words “and 1954 Model” to nomenclature column.
84 33-6 80012-04 Add the words “and 1954 Model” to nomenclature column.
88 35-22 752-692 Add letter “D” in Code column.
88 35-24 752-885 Change this part number to “14330-00”.
88 Add Code “D” explanation: Used with Fuel Valves which have a brass plug.
89 35-31 750-268 Change this part number to “494-644”, add the words “nut and seat” in the nomenclature
column.
90 36-2 187-550 Change this part number to “180-506”, change the nomenclature to read: FELT – AN-F-14.
93 37-7 451-352 Change this part number to “31322-06”, change the part number (31322-02) to (451-358)
in the nomenclature column.
97 40 13805 Add letter “A” in Code column.
97 40 14077 Add letter “A” in Code column.
97 40-7 11339-07 Add letter “A” in Code column.
97 40-8 11030-03 Add letter “B” in Code column, add the words “and ‘135’” in nomenclature column.
97 40-9 Add letter “A” in Code column.
97 Add Code “A” explanation: Used with Model 88-1650 floats.
97 Add Code “B” explanation: Used on PA-20 airplanes Model “135” when Model 89-2000
floats are installed and on PA-20 airplanes Model “115” when Model 88-1650 floats are
installed.
99 40-26 11032-02 Add letter “B” in Code column.
99 40-27 11032-03 Add letter “B” in Code column.
99 40-32 13158-11 Add letter “B” in Code column.
99 40-33 12504-00 Add letter “B” in Code column.
99 40-34 12503-00 Add letter “B” in Code column.
99 Add Code “B” explanation: Used on PA-20 airplanes Model “135” when Model 89-2000
floats are installed.
101 41-44 11601-00 Change this part number to “11601-02”.

Date of Issue – March 1954 Page 5
