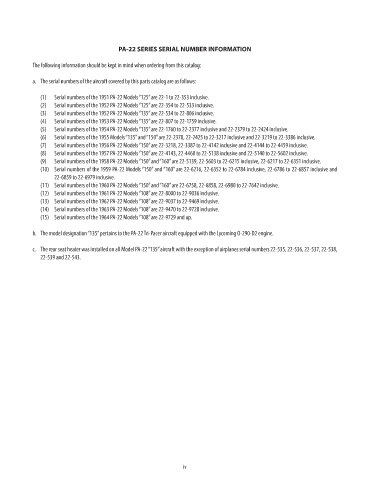

PA-22 SERIES SERIAL NUMBER INFORMATION

The following information should be kept in mind when ordering from this catalog:

a. The serial numbers of the aircraft covered by this parts catalog are as follows:

(1) Serial numbers of the 1951 PA-22 Models “125” are 22-1 to 22-353 inclusive.
(2) Serial numbers of the 1952 PA-22 Models “125” are 22-354 to 22-533 inclusive.
(3) Serial numbers of the 1952 PA-22 Models “135” are 22-534 to 22-806 inclusive.
(4) Serial numbers of the 1953 PA-22 Models “135” are 22-807 to 22-1759 inclusive.
(5) Serial numbers of the 1954 PA-22 Models “135” are 22-1760 to 22-2377 inclusive and 22-2379 to 22-2424 inclusive.
(6) Serial numbers of the 1955 Models “135” and “150” are 22-2378, 22-2425 to 22-3217 inclusive and 22-3219 to 22-3386 inclusive.
(7) Serial numbers of the 1956 PA-22 Models “150” are 22-3218, 22-3387 to 22-4142 inclusive and 22-4144 to 22-4459 inclusive.
(8) Serial numbers of the 1957 PA-22 Models “150” are 22-4143, 22-4460 to 22-5138 inclusive and 22-5140 to 22-5602 inclusive.
(9) Serial numbers of the 1958 PA-22 Models “150” and “160” are 22-5139, 22-5603 to 22-6215 inclusive, 22-6217 to 22-6351 inclusive.
(10) Serial numbers of the 1959 PA-22 Models “150” and “160” are 22-6216, 22-6352 to 22-6784 inclusive, 22-6786 to 22-6857 inclusive and
22-6859 to 22-6979 inclusive.
(11) Serial numbers of the 1960 PA-22 Models “150” and “160” are 22-6758, 22-6858, 22-6980 to 22-7642 inclusive.
(12) Serial numbers of the 1961 PA-22 Models “108” are 22-8000 to 22-9036 inclusive.
(13) Serial numbers of the 1962 PA-22 Models “108” are 22-9037 to 22-9469 inclusive.
(14) Serial numbers of the 1963 PA-22 Models “108” are 22-9470 to 22-9728 inclusive.
(15) Serial numbers of the 1964 PA-22 Models “108” are 22-9729 and up.

b. The model designation “135” pertains to the PA-22 Tri-Pacer aircraft equipped with the Lycoming O-290-D2 engine.

c. The rear seat heater was installed on all Model PA-22 “135” aircraft with the exception of airplanes serial numbers 22-535, 22-536, 22-537, 22-538,
22-539 and 22-543.
