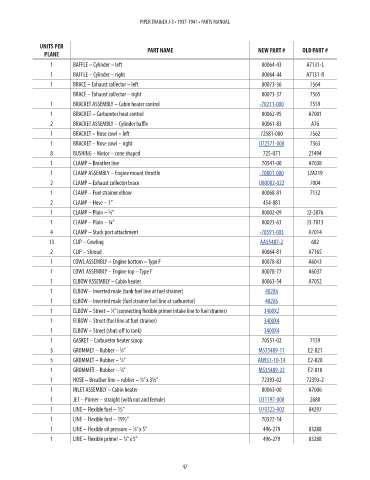

Page 55 - 1937-41 Piper J-3 Trainer Parts Catalog

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 BAFFLE – Cylinder – left 00064-43 A7131-L NM!
1 BAFFLE – Cylinder – right 00064-44 A7131-R NM!
1 BRACE – Exhaust collector – left 00073-36 7564 NM!

BRACE – Exhaust collector – right 00073-37 7565 NM!
1 BRACKET ASSEMBLY – Cabin heater control -70211-000 7559 28.88
1 BRACKET – Carburetor heat control 00062-95 A7001 NM!
2 BRACKET ASSEMBLY – Cylinder baffle 00061-83 A76 NM!
1 BRACKET – Nose cowl – left 72581-000 7562 NM!
1 BRACKET – Nose cowl – right U72571-000 7563 119.86
8 BUSHING – Motor – cone shaped 725-071 21494 NM!
1 CLAMP – Breather line 70541-00 A7038 NM!
1 CLAMP ASSEMBLY – Engine mount throttle -70801-000 J2A219 95.90
2 CLAMP – Exhaust collector brace U80002-022 7004 44.53
1 CLAMP – Fuel strainer elbow 00068-81 7132 NM!
2 CLAMP – Hose – 1” 454-881 NM!
5
1 CLAMP – Plain – ⁄8” 80002-09 J2-2076 NM!
1 CLAMP – Plain – ¾” 00023-63 J3-7013 NM!
4 CLAMP – Stack port attachment -70591-003 A7014 39.17
13 CLIP – Cowling AA55487-2 682 1.80
2 CLIP – Shroud 00064-81 A7165 NM!
1 COWL ASSEMBLY – Engine bottom – Type F 00078-83 A6043 NM!
1 COWL ASSEMBLY – Engine top – Type F 00078-77 A6037 NM!
1 ELBOW ASSEMBLY – Cabin heater 00063-54 A7052 NM!
1 ELBOW – Inverted male (tank fuel line at fuel strainer) 402X6 7.94
1 ELBOW – Inverted male (fuel strainer fuel line at carburetor) 402X6 7.94
1 ELBOW – Street – ⁄8” (connecting flexible primer intake line to fuel strainer) 3400X2 6.14
1
1 ELBOW – Street (fuel line at fuel strainer) 3400X4 7.73
1 ELBOW – Street (shut-off to tank) 3400X4 7.73
1 GASKET – Carburetor heater scoop 70551-02 7159 NM!
3 GROMMET – Rubber – ⁄8” MS35489-11 E2-821 0.60
3
5 GROMMET – Rubber – ⁄8” AN931-10-14 E2-820 2.00
5
1 GROMMET – Rubber – ⁄8” MS35489-22 E2-818 2.34
7
1 HOSE – Breather line – rubber – ⁄8” x 3½” 72393-02 72393-2 NM!
5
1 INLET ASSEMBLY – Cabin heater 00063-00 A7006 NM!
1 JET – Primer – straight (with nut and ferrule) U31197-000 2680 72.82
1 LINE – Flexible fuel – 15” U70322-002 84297 202.78
1 LINE – Flexible fuel – 19½” 70322-14 NM!
1 LINE – Flexible oil pressure – ⁄8” x 5” 496-279 83288 NM!
1
1 LINE – Flexible primer – ⁄8” x 5” 496-279 83288 NM!
1

47
