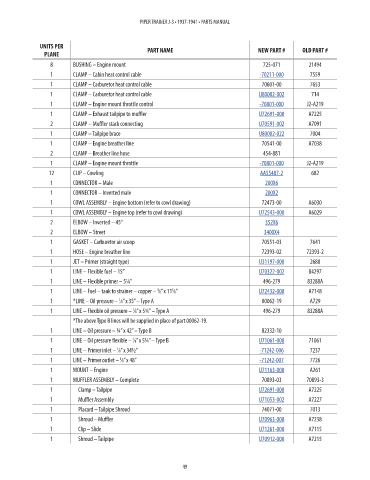

Page 57 - 1937-41 Piper J-3 Trainer Parts Catalog

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
8 BUSHING – Engine mount 725-071 21494 NM!
1 CLAMP – Cabin heat control cable -70211-000 7559 28.88
1 CLAMP – Carburetor heat control cable 70601-00 7653 NM!

1 CLAMP – Carburetor heat control cable U80002-002 714 37.83
1 CLAMP – Engine mount throttle control -70801-000 J2-A219 95.90
1 CLAMP – Exhaust tailpipe to muffler U72691-000 A7225 39.53
2 CLAMP – Muffler stack connecting U70591-002 A7091 38.16
1 CLAMP – Tailpipe brace U80002-022 7004 44.53
1 CLAMP – Engine breather line 70541-00 A7038 NM!
2 CLAMP – Breather line hose 454-881 NM!
1 CLAMP – Engine mount throttle -70801-000 J2-A219 95.90
12 CLIP – Cowling AA55487-2 682 1.80
1 CONNECTOR – Male 200X6 2.76
1 CONNECTOR – Inverted male 200X2 2.33
1 COWL ASSEMBLY – Engine bottom (refer to cowl drawing) 72473-00 A6030 NM!
1 COWL ASSEMBLY – Engine top (refer to cowl drawing) U72543-000 A6029 960.92
2 ELBOW – Inverted – 45° 352X6 8.63
2 ELBOW – Street 3400X4 7.73
1 GASKET – Carburetor air scoop 70551-03 7641 NM!
1 HOSE – Engine breather line 72393-02 72393-2 NM!
1 JET – Primer (straight type) U31197-000 2680 72.82
1 LINE – Flexible fuel – 15” U70322-002 84297 202.78
1 LINE – Flexible primer – 5¼” 496-279 83288A NM!
3
5
1 LINE – Fuel – tank to strainer – copper – ⁄8” x 11 ⁄8” U72432-000 A7148 163.73
1 *LINE – Oil pressure – ⁄8” x 35” – Type A 00062-19 A729 NM!
1
1 LINE – Flexible oil pressure – ⁄8” x 5¼” – Type A 496-279 83288A NM!
1
*The above Type B lines will be supplied in place of part 00062-19.
1 LINE – Oil pressure – ¼” x 42” – Type B 82332-10 NM!
1 LINE – Oil pressure flexible – ⁄8” x 5¼” – Type B U71061-000 71061 180.13
1
1 LINE – Primer inlet – ⁄8” x 34½” -71242-006 7237 75.61
1
1 LINE – Primer outlet – ⁄8” x 48” -71242-007 7726 54.85
1
1 MOUNT – Engine U71163-000 A261 1319.82
1 MUFFLER ASSEMBLY – Complete 70893-03 70893-3 NM!
1 Clamp – Tailpipe U72691-000 A7225 39.53
1 Muffler Assembly U71053-002 A7227 1065.03
1 Placard – Tailpipe Shroud 74071-00 7013 NM!
1 Shroud – Muffler U70963-000 A7238 657.09
1 Clip – Slide U71261-000 A7115 72.99
1 Shroud – Tailpipe U70912-000 A7215 292.50

49
