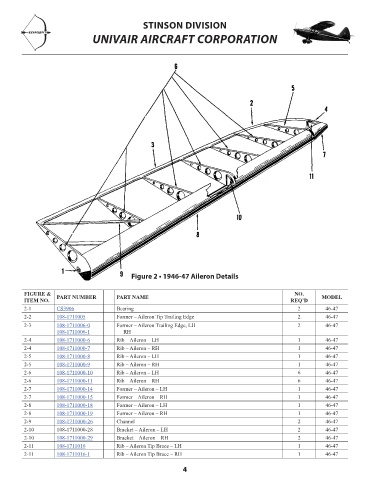

Figure 2 • 1946-47 Aileron Details

FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
2-1 CS3906 Bearing 2 46-47 38.74
2-2 108-1711005 Former – Aileron Tip Trailing Edge 2 46-47 56.14
2-3 108-1711006-0 Former – Aileron Trailing Edge, LH 2 46-47 436.61
108-1711006-1 RH
2-4 108-1711000-6 Rib – Aileron – LH 1 46-47 13.42
2-4 108-1711000-7 Rib – Aileron – RH 1 46-47 13.42
2-5 108-1711000-8 Rib – Aileron – LH 1 46-47 14.64
2-5 108-1711000-9 Rib – Aileron – RH 1 46-47 14.64
2-6 108-1711000-10 Rib – Aileron – LH 6 46-47 22.39
2-6 108-1711000-11 Rib – Aileron – RH 6 46-47 22.39
2-7 108-1711000-14 Former – Aileron – LH 1 46-47 53.18
2-7 108-1711000-15 Former – Aileron – RH 1 46-47 53.18
2-8 108-1711000-18 Former – Aileron – LH 1 46-47 104.44
2-8 108-1711000-19 Former – Aileron – RH 1 46-47 269.42
2-9 108-1711000-26 Channel 2 46-47 7.46
2-10 108-1711000-28 Bracket – Aileron – LH 2 46-47 NM!
2-10 108-1711000-29 Bracket – Aileron – RH 2 46-47 11.67
2-11 108-1711016 Rib – Aileron Tip Brace – LH 1 46-47 20.30
2-11 108-1711016-1 Rib – Aileron Tip Brace – RH 1 46-47 56.67
