P. 15

STINSON DIVISION
                                UNIVAIR AIRCRAFT CORPORATION

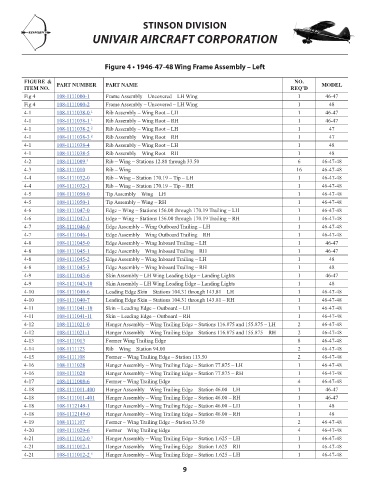

                                    Figure 4 • 1946-47-48 Wing Frame Assembly – Left

         FIGURE &   PART NUMBER     PART NAME                                                     NO.      MODEL                PRICE
         ITEM NO.                                                                                REQ’D
         Fig 4      108-1111000-1   Frame Assembly – Uncovered – LH Wing                            1        46-47              20977.79
         Fig 4      108-1111000-2   Frame Assembly – Uncovered – LH Wing                            1         48                20977.79
         4-1        108-1111038-0  1  Rib Assembly – Wing Root – LH                                 1        46-47              585.62
         4-1        108-1111038-1  1  Rib Assembly – Wing Root – RH                                 1        46-47              510.96
         4-1        108-1111038-2  2  Rib Assembly – Wing Root – LH                                 1         47                388.97
         4-1        108-1111038-3  2  Rib Assembly – Wing Root – RH                                 1         47                1003.96
         4-1        108-1111038-4   Rib Assembly – Wing Root – LH                                   1         48                414.83
         4-1        108-1111038-5   Rib Assembly – Wing Root – RH                                   1         48                414.83
         4-2        108-1111009  5  Rib – Wing – Stations 12.88 through 33.50                       6       46-47-48            155.43
         4-3        108-1111010     Rib – Wing                                                     16       46-47-48            142.89
         4-4        108-1111032-0   Rib – Wing – Station 170.19 – Tip – LH                          1       46-47-48            255.90
         4-4        108-1111032-1   Rib – Wing – Station 170.19 – Tip – RH                          1       46-47-48            228.12
         4-5        108-1111050-0   Tip Assembly – Wing – LH                                        1       46-47-48            1996.09
         4-5        108-1111050-1   Tip Assembly – Wing – RH                                        1       46-47-48            2776.91
         4-6        108-1111047-0   Edge – Wing – Stations 156.00 through 170.19 Trailing – LH      1       46-47-48            178.66
         4-6        108-1111047-1   Edge – Wing – Stations 156.00 through 170.19 Trailing – RH      1       46-47-48            166.11
         4-7        108-1111046-0   Edge Assembly – Wing Outboard Trailing – LH                     1       46-47-48            553.94
         4-7        108-1111046-1   Edge Assembly – Wing Outboard Trailing – RH                     1       46-47-48            455.67
         4-8        108-1111045-0   Edge Assembly – Wing Inboard Trailing – LH                      1        46-47              455.67
         4-8        108-1111045-1   Edge Assembly – Wing Inboard Trailing – RH                      1        46-47              455.67
         4-8        108-1111045-2   Edge Assembly – Wing Inboard Trailing – LH                      1         48                455.67
         4-8        108-1111045-3   Edge Assembly – Wing Inboard Trailing – RH                      1         48                455.67
         4-9        108-1111043-6   Skin Assembly – LH Wing Leading Edge – Landing Lights           1        46-47              668.28
         4-9        108-1111043-10  Skin Assembly – LH Wing Leading Edge – Landing Lights           1         48                474.62
         4-10       108-1111040-6   Leading Edge Skin – Stations 104.31 through 143.81 – LH         1       46-47-48            94.20
         4-10       108-1111040-7   Leading Edge Skin – Stations 104.31 through 143.81 – RH         1       46-47-48            109.37
         4-11       108-1111041-10  Skin – Leading Edge – Outboard – LH                             1       46-47-48            526.84
         4-11       108-1111041-11  Skin – Leading Edge – Outboard – RH                             1       46-47-48            497.02
         4-12       108-1111021-0   Hanger Assembly – Wing Trailing Edge – Stations 116.875 and 155.875 – LH  2  46-47-48       354.38
         4-12       108-1111021-1   Hanger Assembly – Wing Trailing Edge – Stations 116.875 and 155.875 – RH  2  46-47-48       354.38
         4-13       108-1111013     Former Wing Trailing Edge                                       8       46-47-48            39.45
         4-14       108-1111123     Rib – Wing – Station 94.00                                      2       46-47-48            116.11
         4-15       108-1111108     Former – Wing Trailing Edge – Station 113.50                    2       46-47-48            43.71
         4-16       108-1111028     Hanger Assembly – Wing Trailing Edge – Station 77.875 – LH      1       46-47-48            304.09
         4-16       108-1111028     Hanger Assembly – Wing Trailing Edge – Station 77.875 – RH      1       46-47-48            304.09
         4-17       108-1111008-6   Former – Wing Trailing Edge                                     4       46-47-48            41.45
         4-18       108-1111011-400  Hanger Assembly – Wing Trailing Edge – Station 46.00 – LH      1        46-47              239.69
         4-18       108-1111011-401  Hanger Assembly – Wing Trailing Edge – Station 46.00 – RH      1        46-47              239.69
         4-18       108-1112149-1   Hanger Assembly – Wing Trailing Edge – Station 46.00 – LH       1         48                422.89
         4-18       108-1112149-0   Hanger Assembly – Wing Trailing Edge – Station 46.00 – RH       1         48                187.91
         4-19       108-1111107     Former – Wing Trailing Edge – Station 33.50                     2       46-47-48            35.58
         4-20       108-1111029-6   Former – Wing Trailing Edge                                     4       46-47-48            39.45
         4-21       108-1111012-0  3  Hanger Assembly – Wing Trailing Edge – Station 1.625 – LH     1       46-47-48            239.69
         4-21       108-1111012-1   Hanger Assembly – Wing Trailing Edge – Station 1.625 – RH       1       46-47-48            239.69
         4-21       108-1111012-2  6  Hanger Assembly – Wing Trailing Edge – Station 1.625 – LH     1       46-47-48            239.69
