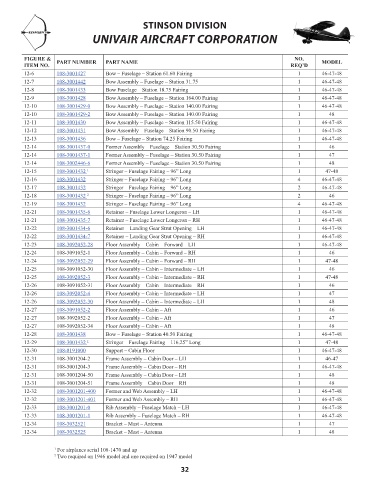

Page 38 - Stinson 108 Series Interactive Digital Parts Catalog

STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
12-6 108-3001427 Bow – Fuselage – Station 61.60 Fairing 1 46-47-48 142.18
12-7 108-3001442 Bow Assembly – Fuselage – Station 31.75 1 46-47-48 195.03
12-8 108-3001433 Bow Fuselage – Station 18.75 Fairing 1 46-47-48 116.11
12-9 108-3001428 Bow Assembly – Fuselage – Station 164.00 Fairing 1 46-47-48 109.03
12-10 108-3001429-0 Bow Assembly – Fuselage – Station 140.00 Fairing 1 46-47-48 109.29
12-10 108-3001429-2 Bow Assembly – Fuselage – Station 140.00 Fairing 1 48 112.01
12-11 108-3001430 Bow Assembly – Fuselage – Station 115.50 Fairing 1 46-47-48 225.70
12-12 108-3001431 Bow Assembly – Fuselage – Station 90.50 Fairing 1 46-47-48 217.35
12-13 108-3001436 Bow – Fuselage – Station 74.25 Fairing 1 46-47-48 155.18
12-14 108-3001437-0 Former Assembly – Fuselage – Station 30.50 Fairing 1 46 134.30
12-14 108-3001437-1 Former Assembly – Fuselage – Station 30.50 Fairing 1 47 120.47
12-14 108-3002446-6 Former Assembly – Fuselage – Station 30.50 Fairing 1 48 51.89
12-15 108-3001432 1 Stringer – Fuselage Fairing – 96” Long 1 47-48 59.10
12-16 108-3001432 Stringer – Fuselage Fairing – 96” Long 4 46-47-48 59.10
12-17 108-3001432 Stringer – Fuselage Fairing – 96” Long 2 46-47-48 59.10
12-18 108-3001432 2 Stringer – Fuselage Fairing – 96” Long 2 46 59.10
12-19 108-3001432 Stringer – Fuselage Fairing – 96” Long 4 46-47-48 59.10
12-21 108-3001435-6 Retainer – Fuselage Lower Longeron – LH 1 46-47-48 135.42
12-21 108-3001435-7 Retainer – Fuselage Lower Longeron – RH 1 46-47-48 135.42
12-22 108-3001434-6 Retainer – Landing Gear Strut Opening – LH 1 46-47-48 96.68
12-22 108-3001434-7 Retainer – Landing Gear Strut Opening – RH 1 46-47-48 96.68
12-23 108-3092052-28 Floor Assembly – Cabin – Forward – LH 1 46-47-48 400.81
12-24 108-3091052-1 Floor Assembly – Cabin – Forward – RH 1 46 NM!
12-24 108-3092052-29 Floor Assembly – Cabin – Forward – RH 1 47-48 400.81
12-25 108-3091052-30 Floor Assembly – Cabin – Intermediate – LH 1 46 NM!
12-25 108-3092052-3 Floor Assembly – Cabin – Intermediate – RH 1 47-48 67.56
12-26 108-3091052-31 Floor Assembly – Cabin – Intermediate – RH 1 46 NM!
12-26 108-3092052-4 Floor Assembly – Cabin – Intermediate – LH 1 47 85.45
12-26 108-3092052-30 Floor Assembly – Cabin – Intermediate – LH 1 48 55.03
12-27 108-3091052-2 Floor Assembly – Cabin – Aft 1 46 146.45
12-27 108-3092052-2 Floor Assembly – Cabin – Aft 1 47 NM!
12-27 108-3092052-34 Floor Assembly – Cabin – Aft 1 48 NM!
12-28 108-3001438 Bow – Fuselage – Station 40.50 Fairing 1 46-47-48 75.59
12-29 108-3001432 1 Stringer – Fuselage Fairing – 116.25” Long 1 47-48 59.10
12-30 108-8191000 Support – Cabin Floor 1 46-47-48 50.32
12-31 108-3001204-2 Frame Assembly – Cabin Door – LH 1 46-47 NM!
12-31 108-3001204-3 Frame Assembly – Cabin Door – RH 1 46-47-48 NM!
12-31 108-3001204-50 Frame Assembly – Cabin Door – LH 1 48 NM!
12-31 108-3001204-51 Frame Assembly – Cabin Door – RH 1 48 NM!
12-32 108-3001201-400 Former and Web Assembly – LH 1 46-47-48 203.89
12-32 108-3001201-401 Former and Web Assembly – RH 1 46-47-48 203.89
12-33 108-3001201-0 Rib Assembly – Fuselage Match – LH 1 46-47-48 584.77
12-33 108-3001201-1 Rib Assembly – Fuselage Match – RH 1 46-47-48 584.77
12-34 108-3032521 Bracket – Mast – Antenna 1 47 15.53
12-34 108-3032525 Bracket – Mast – Antenna 1 48 4.39

1 For airplanes serial 108-1470 and up
2 Two required on 1946 model and one required on 1947 model
32
