STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

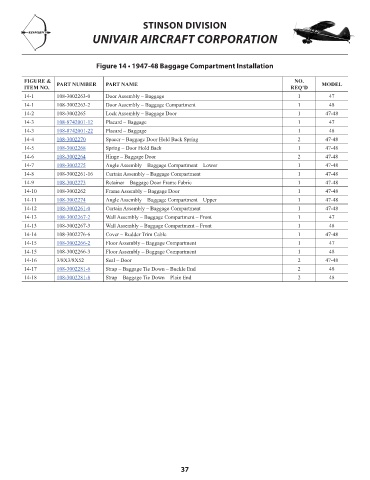

Figure 14 • 1947-48 Baggage Compartment Installation

FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
14-1 108-3002263-0 Door Assembly – Baggage 1 47 NM!
14-1 108-3002263-2 Door Assembly – Baggage Compartment 1 48 NM!
14-2 108-3002265 Lock Assembly – Baggage Door 1 47-48 NM!
14-3 108-8742001-12 Placard – Baggage 1 47 24.78
14-3 108-8742001-22 Placard – Baggage 1 48 13.28
14-4 108-3002270 Spacer – Baggage Door Hold Back Spring 2 47-48 4.99
14-5 108-3002268 Spring – Door Hold Back 1 47-48 49.49
14-6 108-3002264 Hinge – Baggage Door 2 47-48 39.68
14-7 108-3002275 Angle Assembly – Baggage Compartment – Lower 1 47-48 44.59
14-8 108-3002261-16 Curtain Assembly – Baggage Compartment 1 47-48 NM!
14-9 108-3002273 Retainer – Baggage Door Frame Fabric 1 47-48 100.38
14-10 108-3002262 Frame Assembly – Baggage Door 1 47-48 NM!
14-11 108-3002274 Angle Assembly – Baggage Compartment – Upper 1 47-48 34.11
14-12 108-3002261-0 Curtain Assembly – Baggage Compartment 1 47-48 246.00
14-13 108-3002267-2 Wall Assembly – Baggage Compartment – Front 1 47 456.41
14-13 108-3002267-3 Wall Assembly – Baggage Compartment – Front 1 48 NM!
14-14 108-3002276-6 Cover – Rudder Trim Cable 1 47-48 NM!
14-15 108-3002266-2 Floor Assembly – Baggage Compartment 1 47 561.58
14-15 108-3002266-3 Floor Assembly – Baggage Compartment 1 48 NM!
14-16 3/8X3/8X52 Seal – Door 2 47-48 NM!
14-17 108-3002281-6 Strap – Baggage Tie Down – Buckle End 2 48 18.56
14-18 108-3002281-8 Strap – Baggage Tie Down – Plain End 2 48 18.55

37
