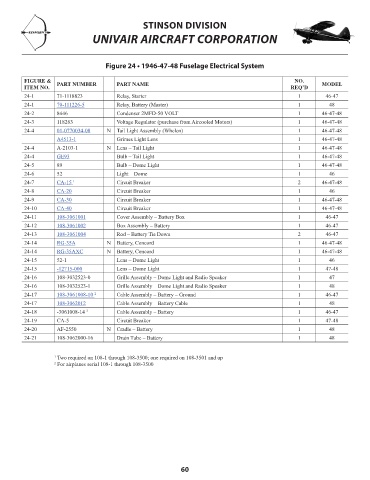

Figure 24 • 1946-47-48 Fuselage Electrical System
FIGURE & NO.
ITEM NO. PART NUMBER PART NAME REQ’D MODEL PRICE
24-1 71-1118823 Relay, Starter 1 46-47 NM!
24-1 70-111226-5 Relay, Battery (Master) 1 48 35.80
24-2 8446 Condenser 2MFD-50 VOLT 1 46-47-48 NM!
24-3 118263 Voltage Regulator (purchase from Aircooled Motors) 1 46-47-48 NM!
24-4 01-0770034-08 N Tail Light Assembly (Whelen) 1 46-47-48 243.36
A4513-1 Grimes Light Lens 1 46-47-48 41.50
24-4 A-2103-1 N Lens – Tail Light 1 46-47-48 NM!
24-4 GE93 Bulb – Tail Light 1 46-47-48 4.63
24-5 89 Bulb – Dome Light 1 46-47-48 NM!
24-6 52 Light – Dome 1 46 NM!
24-7 CA-15 1 Circuit Breaker 2 46-47-48 278.31
24-8 CA-20 Circuit Breaker 1 46 93.74
24-9 CA-30 Circuit Breaker 1 46-47-48 6.05
24-10 CA-40 Circuit Breaker 1 46-47-48 6.05
24-11 108-3061001 Cover Assembly – Battery Box 1 46-47 291.23
24-12 108-3061002 Box Assembly – Battery 1 46-47 569.22
24-13 108-3061004 Rod – Battery Tie Down 2 46-47 38.89
24-14 RG-35A N Battery, Concord 1 46-47-48 479.00
24-14 RG-35AXC N Battery, Concord 1 46-47-48 512.00
24-15 52-1 Lens – Dome Light 1 46 NM!
24-15 -12715-000 Lens – Dome Light 1 47-48 195.72
24-16 108-3032523-0 Grille Assembly – Dome Light and Radio Speaker 1 47 NM!
24-16 108-3032523-1 Grille Assembly – Dome Light and Radio Speaker 1 48 NM!
24-17 108-3061008-10 2 Cable Assembly – Battery – Ground 1 46-47 13.66
24-17 108-3062012 Cable Assembly – Battery Cable 1 48 71.43
24-18 -3061008-14 2 Cable Assembly – Battery 1 46-47 NM!
24-19 CA-5 Circuit Breaker 1 47-48 NM!
24-20 AF-2550 N Cradle – Battery 1 48 NM!
24-21 108-3062000-16 Drain Tube – Battery 1 48 NM!
1 Two required on 108-1 through 108-3500; one required on 108-3501 and up
2 For airplanes serial 108-1 through 108-3500
