P. 70
STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

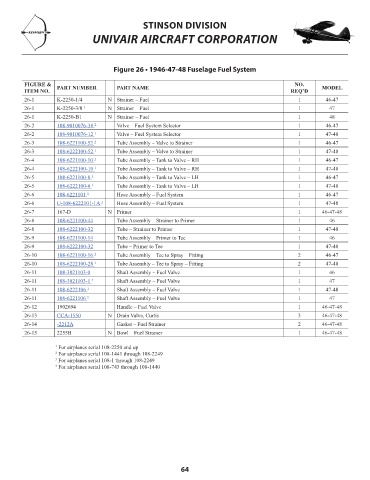

Figure 26 • 1946-47-48 Fuselage Fuel System
FIGURE & NO.
ITEM NO. PART NUMBER PART NAME REQ’D MODEL PRICE
26-1 K-2250-1/4 N Strainer – Fuel 1 46-47 NM!
26-1 K-2250-3/8 1 N Strainer – Fuel 1 47 NM!
26-1 K-2250-B1 N Strainer – Fuel 1 48 NM!
26-2 108-9010076-38 2 Valve – Fuel System Selector 1 46-47 608.29
26-2 108-9010076-12 1 Valve – Fuel System Selector 1 47-48 608.29
26-3 108-6221100-52 3 Tube Assembly – Valve to Strainer 1 46-47 92.28
26-3 108-6222100-52 1 Tube Assembly – Valve to Strainer 1 47-48 285.48
26-4 108-6221100-10 3 Tube Assembly – Tank to Valve – RH 1 46-47 112.01
26-4 108-6222100-10 1 Tube Assembly – Tank to Valve – RH 1 47-48 352.14
26-5 108-6221100-8 3 Tube Assembly – Tank to Valve – LH 1 46-47 112.01
26-5 108-6222100-8 1 Tube Assembly – Tank to Valve – LH 1 47-48 443.68
26-6 108-6221101 3 Hose Assembly – Fuel System 1 46-47 293.25
26-6 U-108-6222101-1A 1 Hose Assembly – Fuel System 1 47-48 334.57
26-7 167-D N Primer 1 46-47-48 NM!
26-8 108-6221100-44 Tube Assembly – Strainer to Primer 1 46 87.72
26-8 108-6222100-32 Tube – Strainer to Primer 1 47-48 76.90
26-9 108-6221100-14 Tube Assembly – Primer to Tee 1 46 70.88
26-9 108-6222100-32 Tube – Primer to Tee 1 47-48 76.90
26-10 108-6221100-16 3 Tube Assembly – Tee to Spray – Fitting 2 46-47 87.16
26-10 108-6222100-28 1 Tube Assembly – Tee to Spray – Fitting 2 47-48 43.45
26-11 108-3021103-0 Shaft Assembly – Fuel Valve 1 46 44.93
26-11 108-3021103-1 4 Shaft Assembly – Fuel Valve 1 47 47.15
26-11 108-6222106 1 Shaft Assembly – Fuel Valve 1 47-48 232.24
26-11 108-6221106 2 Shaft Assembly – Fuel Valve 1 47 168.51
26-12 1902694 Handle – Fuel Valve 1 46-47-48 NM!
26-13 CCA-1550 N Drain Valve, Curtis 3 46-47-48 22.84
26-14 -2212A Gasket – Fuel Strainer 2 46-47-48 5.46
26-15 2255B N Bowl – Fuel Strainer 1 46-47-48 NM!
1 For airplanes serial 108-2250 and up
2 For airplanes serial 108-1441 through 108-2249
3 For airplanes serial 108-1 through 108-2249
4 For airplanes serial 108-743 through 108-1440
64
