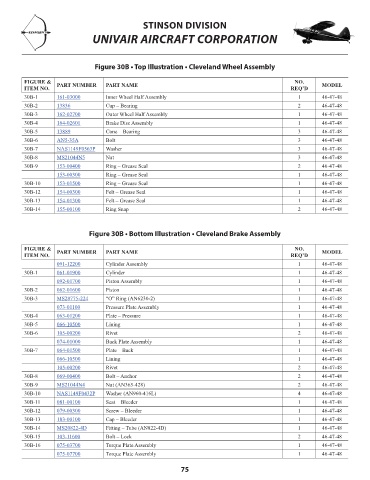

P. 81

STINSON DIVISION
                                UNIVAIR AIRCRAFT CORPORATION





                                Figure 30B • Top Illustration • Cleveland Wheel Assembly

         FIGURE &   PART NUMBER     PART NAME                                                     NO.      MODEL                PRICE
         ITEM NO.                                                                                REQ’D
         30B-1      161-03000       Inner Wheel Half Assembly                                       1       46-47-48            730.38
         30B-2      13836           Cup – Bearing                                                   2       46-47-48            36.98
         30B-3      162-02700       Outer Wheel Half Assembly                                       1       46-47-48            642.94
         30B-4      164-02601       Brake Disc Assembly                                             1       46-47-48            185.93
         30B-5      13889           Cone – Bearing                                                  3       46-47-48            99.98
         30B-6      AN5-35A         Bolt                                                            3       46-47-48            1.56
         30B-7      NAS1149F0563P   Washer                                                          3       46-47-48            0.12
         30B-8      MS21044N5       Nut                                                             3       46-47-48            0.50
         30B-9      153-00400       Ring – Grease Seal                                              2       46-47-48            28.62
                    153-00300       Ring – Grease Seal                                              1       46-47-48            17.06
         30B-10     153-01500       Ring – Grease Seal                                              1       46-47-48            35.22
         30B-12     154-00300       Felt – Grease Seal                                              1       46-47-48            18.87
         30B-13     154-01300       Felt – Grease Seal                                              1       46-47-48            17.74
         30B-14     155-00100       Ring Snap                                                       2       46-47-48            21.71



                               Figure 30B • Bottom Illustration • Cleveland Brake Assembly

         FIGURE &                                                                                 NO.
         ITEM NO.   PART NUMBER     PART NAME                                                    REQ’D     MODEL                PRICE
                    091-12200       Cylinder Assembly                                               1       46-47-48            NM!
         30B-1      061-01900       Cylinder                                                        1       46-47-48            815.03
                    092-01700       Piston Assembly                                                 1       46-47-48            125.81
         30B-2      062-01600       Piston                                                          1       46-47-48            140.95
         30B-3      MS28775-224     “O” Ring (AN6230-2)                                             1       46-47-48            2.28
                    073-01100       Pressure Plate Assembly                                         1       46-47-48            219.15
         30B-4      063-01200       Plate – Pressure                                                1       46-47-48            120.83
         30B-5      066-10500       Lining                                                          1       46-47-48            17.35
         30B-6      105-00200       Rivet                                                           2       46-47-48            1.45
                    074-01000       Back Plate Assembly                                             1       46-47-48            321.08
         30B-7      064-01500       Plate – Back                                                    1       46-47-48            168.17
                    066-10500       Lining                                                          1       46-47-48            17.35
                    105-00200       Rivet                                                           2       46-47-48            1.45
         30B-8      069-00400       Bolt – Anchor                                                   2       46-47-48            56.42
         30B-9      MS21044N4       Nut (AN365-428)                                                 2       46-47-48            0.30
         30B-10     NAS1149F0432P   Washer (AN960-416L)                                             4       46-47-48            0.04
         30B-11     081-00100       Seat – Bleeder                                                  1       46-47-48            37.60
         30B-12     079-00300       Screw – Bleeder                                                 1       46-47-48            22.34
         30B-13     183-00100       Cap – Bleeder                                                   1       46-47-48            5.65
         30B-14     MS20822-4D      Fitting – Tube (AN822-4D)                                       1       46-47-48            20.00
         30B-15     103-11600       Bolt – Lock                                                     2       46-47-48            14.80
         30B-16     075-03700       Torque Plate Assembly                                           1       46-47-48            581.72
                    075-07700       Torque Plate Assembly                                           1       46-47-48            857.77
