STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

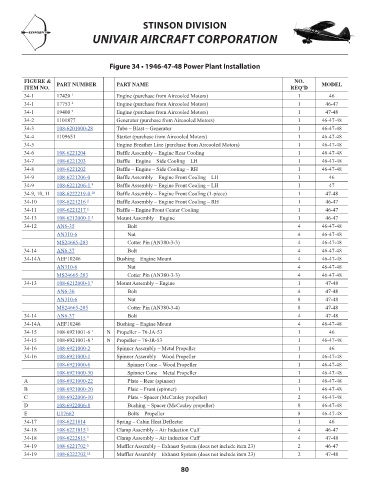

Figure 34 • 1946-47-48 Power Plant Installation
FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
34-1 17420 1 Engine (purchase from Aircooled Motors) 1 46 NM!
34-1 17753 2 Engine (purchase from Aircooled Motors) 1 46-47 NM!
34-1 19400 9 Engine (purchase from Aircooled Motors) 1 47-48 NM!
34-2 1101877 Generator (purchase from Aircooled Motors) 1 46-47-48 NM!
34-3 108-6201000-28 Tube – Blast – Generator 1 46-47-48 35.98
34-4 1109651 Starter (purchase from Aircooled Motors) 1 46-47-48 NM!
34-5 Engine Breather Line (purchase from Aircooled Motors) 1 46-47-48
34-6 108-6221204 Baffle Assembly – Engine Rear Cooling 1 46-47-48 705.68
34-7 108-6221203 Baffle – Engine – Side Cooling – LH 1 46-47-48 179.51
34-8 108-6221202 Baffle – Engine – Side Cooling – RH 1 46-47-48 150.42
34-9 108-6221206-0 Baffle Assembly – Engine Front Cooling – LH 1 46 265.10
34-9 108-6221206-1 8 Baffle Assembly – Engine Front Cooling – LH 1 47 213.81
34-9, 10, 11 108-6222219-0 10 Baffle Assembly – Engine Front Cooling (1-piece) 1 47-48 479.28
34-10 108-6221216 6 Baffle Assembly – Engine Front Cooling – RH 1 46-47 114.60
34-11 108-6221217 6 Baffle – Engine Front Center Cooling 1 46-47 32.80
34-13 108-6212000-1 5 Mount Assembly – Engine 1 46-47 3032.95
34-12 AN6-35 Bolt 4 46-47-48 2.00
AN310-6 Nut 4 46-47-48 2.58
MS24665-283 Cotter Pin (AN380-3-3) 4 46-47-48 0.14
34-14 AN6-37 Bolt 4 46-47-48 2.00
34-14A AEF10246 Bushing – Engine Mount 4 46-47-48 NM!
AN310-6 Nut 4 46-47-48 2.58
MS24665-283 Cotter Pin (AN380-3-3) 4 46-47-48 0.14
34-13 108-6212000-1 9 Mount Assembly – Engine 1 47-48 3032.95
AN6-36 Bolt 4 47-48 3.38
AN310-6 Nut 8 47-48 2.58
MS24665-285 Cotter Pin (AN380-3-4) 8 47-48 0.04
34-14 AN6-37 Bolt 4 47-48 2.00
34-14A AEF10246 Bushing – Engine Mount 4 46-47-48 NM!
34-15 108-6921001-6 1 N Propeller – 76-JA-53 1 46 NM!
34-15 108-6921001-8 3 N Propeller – 76-JR-53 1 46-47-48 NM!
34-16 108-6921000-2 Spinner Assembly – Metal Propeller 1 46 1112.53
34-16 108-6921000-1 Spinner Assembly – Wood Propeller 1 46-47-48 1002.35
108-6921000-6 Spinner Cone – Wood Propeller 1 46-47-48 644.87
108-6921000-30 Spinner Cone – Metal Propeller 1 46-47-48 637.36
A 108-6921000-22 Plate – Rear (spinner) 1 46-47-48 183.15
B 108-6921000-20 Plate – Front (spinner) 1 46-47-48 266.20
C 108-6922006-10 Plate – Spacer (McCauley propeller) 2 46-47-48 99.71
D 108-6922006-8 Bushing – Spacer (McCauley propeller) 8 46-47-48 16.31
E U17662 Bolts – Propeller 8 46-47-48 47.12
34-17 108-6221814 Spring – Cabin Heat Deflector 1 46 21.18
34-18 108-6221815 5 Clamp Assembly – Air Induction Cuff 4 46-47 26.62
34-18 108-6222815 9 Clamp Assembly – Air Induction Cuff 4 47-48 37.08
34-19 108-6221702 6 Muffler Assembly – Exhaust System (does not include item 23) 2 46-47 1389.98
34-19 108-6222702 10 Muffler Assembly – Exhaust System (does not include item 23) 2 47-48 1382.14
