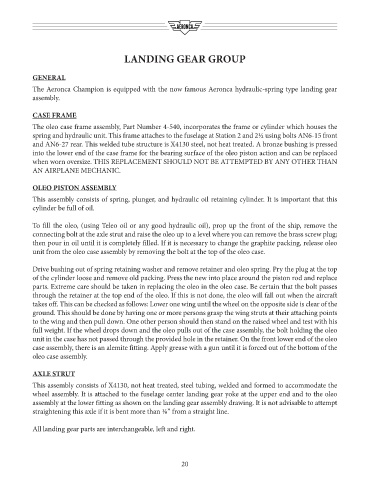

LANDING GEAR GROUP


            GENERAL
            The Aeronca Champion is equipped with the now famous Aeronca hydraulic-spring type landing gear
            assembly.


            CASE FRAME
            The oleo case frame assembly, Part Number 4-540, incorporates the frame or cylinder which houses the
            spring and hydraulic unit. This frame attaches to the fuselage at Station 2 and 2½ using bolts AN6-15 front
            and AN6-27 rear. This welded tube structure is X4130 steel, not heat treated. A bronze bushing is pressed
            into the lower end of the case frame for the bearing surface of the oleo piston action and can be replaced
            when worn oversize. THIS REPLACEMENT SHOULD NOT BE ATTEMPTED BY ANY OTHER THAN
            AN AIRPLANE MECHANIC.


            OLEO PISTON ASSEMBLY
            This assembly consists of spring, plunger, and hydraulic oil retaining cylinder. It is important that this
            cylinder be full of oil.


            To fill the oleo, (using Teleo oil or any good hydraulic oil), prop up the front of the ship, remove the
            connecting bolt at the axle strut and raise the oleo up to a level where you can remove the brass screw plug;
            then pour in oil until it is completely filled. If it is necessary to change the graphite packing, release oleo
            unit from the oleo case assembly by removing the bolt at the top of the oleo case.

            Drive bushing out of spring retaining washer and remove retainer and oleo spring. Pry the plug at the top
            of the cylinder loose and remove old packing. Press the new into place around the piston rod and replace
            parts. Extreme care should be taken in replacing the oleo in the oleo case. Be certain that the bolt passes
            through the retainer at the top end of the oleo. If this is not done, the oleo will fall out when the aircraft
            takes off. This can be checked as follows: Lower one wing until the wheel on the opposite side is clear of the
            ground. This should be done by having one or more persons grasp the wing struts at their attaching points
            to the wing and then pull down. One other person should then stand on the raised wheel and test with his
            full weight. If the wheel drops down and the oleo pulls out of the case assembly, the bolt holding the oleo
            unit in the case has not passed through the provided hole in the retainer. On the front lower end of the oleo
            case assembly, there is an alemite fitting. Apply grease with a gun until it is forced out of the bottom of the
            oleo case assembly.


            AXLE STRUT
            This assembly consists of X4130, not heat treated, steel tubing, welded and formed to accommodate the
            wheel assembly. It is attached to the fuselage center landing gear yoke at the upper end and to the oleo
            assembly at the lower fitting as shown on the landing gear assembly drawing. It is not advisable to attempt
            straightening this axle if it is bent more than ⅛” from a straight line.


            All landing gear parts are interchangeable, left and right.
