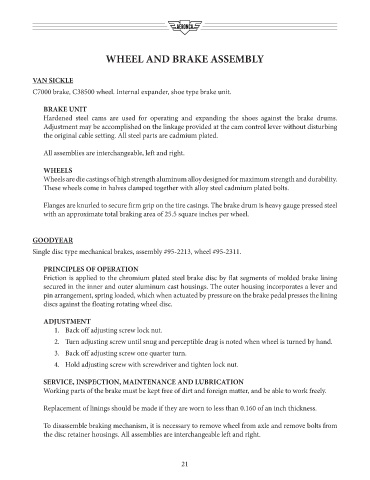

WHEEL AND BRAKE ASSEMBLY



            VAN SICKLE
            C7000 brake, C38500 wheel. Internal expander, shoe type brake unit.


               BRAKE UNIT
               Hardened steel cams are used for operating and expanding the shoes against the brake drums.
               Adjustment may be accomplished on the linkage provided at the cam control lever without disturbing
               the original cable setting. All steel parts are cadmium plated.

               All assemblies are interchangeable, left and right.


               WHEELS
               Wheels are die castings of high strength aluminum alloy designed for maximum strength and durability.
               These wheels come in halves clamped together with alloy steel cadmium plated bolts.

               Flanges are knurled to secure firm grip on the tire casings. The brake drum is heavy gauge pressed steel
               with an approximate total braking area of 25.5 square inches per wheel.



            GOODYEAR

            Single disc type mechanical brakes, assembly #95-2213, wheel #95-2311.

               PRINCIPLES OF OPERATION
               Friction is applied to the chromium plated steel brake disc by flat segments of molded brake lining
               secured in the inner and outer aluminum cast housings. The outer housing incorporates a lever and
               pin arrangement, spring loaded, which when actuated by pressure on the brake pedal presses the lining
               discs against the floating rotating wheel disc.

               ADJUSTMENT
                   1.  Back off adjusting screw lock nut.

                   2.  Turn adjusting screw until snug and perceptible drag is noted when wheel is turned by hand.
                   3.  Back off adjusting screw one quarter turn.
                   4.  Hold adjusting screw with screwdriver and tighten lock nut.


               SERVICE, INSPECTION, MAINTENANCE AND LUBRICATION
               Working parts of the brake must be kept free of dirt and foreign matter, and be able to work freely.

               Replacement of linings should be made if they are worn to less than 0.160 of an inch thickness.


               To disassemble braking mechanism, it is necessary to remove wheel from axle and remove bolts from
               the disc retainer housings. All assemblies are interchangeable left and right.
