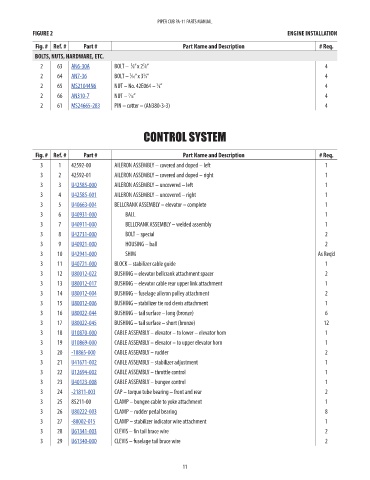

PIPER CUB PA-11 PARTS MANUAL
FIGURE 2 ENGINE INSTALLATION

Fig. # Ref. # Part # Part Name and Description # Req. Price
BOLTS, NUTS, HARDWARE, ETC. x
2 63 AN6-30A BOLT – ⁄8” x 2 ⁄8” 4 1.64
3
7
7
2 64 AN7-36 BOLT – ⁄16” x 3 ⁄4” 4 11.82
3
2 65 MS21044N6 NUT – No. 42E064 – ⁄8” 4 0.58
3
2 66 AN310-7 NUT – ⁄16” 4 1.50
7
2 61 MS24665-283 PIN – cotter – (AN380-3-3) 4 0.14

CONTROL SYSTEM

Fig. # Ref. # Part # Part Name and Description # Req. Price
3 1 42592-00 AILERON ASSEMBLY – covered and doped – left 1 NM!
3 2 42592-01 AILERON ASSEMBLY – covered and doped – right 1 NM!
3 3 U42585-000 AILERON ASSEMBLY – uncovered – left 1 1707.17
3 4 U42585-001 AILERON ASSEMBLY – uncovered – right 1 1707.17
3 5 U40663-004 BELLCRANK ASSEMBLY – elevator – complete 1 905.74
3 6 U40931-000 BALL 1 98.84
3 7 U40911-000 BELLCRANK ASSEMBLY – welded assembly 1 157.86

3 8 U42731-000 BOLT – special 2 66.13
3 9 U40921-000 HOUSING – ball 2 70.30
3 10 U42941-000 SHIM As Req’d 16.68
3 11 U40721-000 BLOCK – stabilizer cable guide 1 49.42
3 12 U80012-022 BUSHING – elevator bellcrank attachment spacer 2 13.16
3 13 U80012-017 BUSHING – elevator cable rear upper link attachment 1 14.01
3 14 U80012-004 BUSHING – fuselage aileron pulley attachment 2 9.79
3 15 U80012-006 BUSHING – stabilizer tie rod clevis attachment 1 19.76
3 16 U80022-044 BUSHING – tail surface – long (bronze) 6 1.40
3 17 U80022-045 BUSHING – tail surface – short (bronze) 12 1.76
3 18 U10870-000 CABLE ASSEMBLY – elevator – to lower – elevator horn 1 174.11
3 19 U10869-000 CABLE ASSEMBLY – elevator – to upper elevator horn 1 146.31
3 20 -10865-000 CABLE ASSEMBLY – rudder 2 239.80
3 21 U41671-002 CABLE ASSEMBLY – stabilizer adjustment 1 338.18
3 22 U12694-002 CABLE ASSEMBLY – throttle control 1 654.45
3 23 U40123-008 CABLE ASSEMBLY – bungee control 1 52.00
3 24 -21811-003 CAP – torque tube bearing – front and rear 2 211.54
3 25 85211-00 CLAMP – bungee cable to yoke attachment 1 NM!
3 26 U80222-003 CLAMP – rudder pedal bearing 8 21.33
3 27 -80002-015 CLAMP – stabilizer indicator wire attachment 1 23.71
3 28 U61341-003 CLEVIS – fin tail brace wire 2 36.88
3 29 U61340-000 CLEVIS – fuselage tail brace wire 2 48.85
