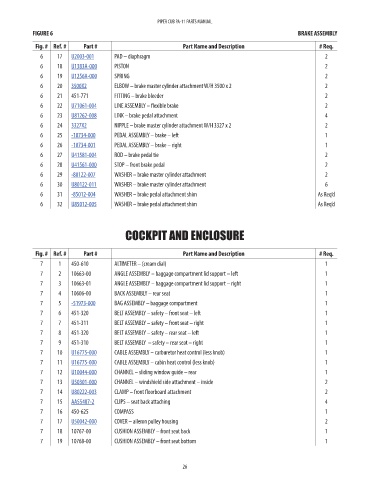

PIPER CUB PA-11 PARTS MANUAL
FIGURE 6 BRAKE ASSEMBLY

Fig. # Ref. # Part # Part Name and Description # Req. Price
6 17 U2003-001 PAD – diaphragm 2 44.86
6 18 U1383A-000 PISTON 2 76.74
6 19 U1256A-000 SPRING 2 20.28
6 20 3500X2 ELBOW – brake master cylinder attachment W/H 3500 x 2 2 5.20
6 21 451-771 FITTING – brake bleeder 2 NM!
6 22 U71061-004 LINE ASSEMBLY – flexible brake 2 242.55
6 23 U81262-008 LINK – brake pedal attachment 4 13.56
6 24 3327X2 NIPPLE – brake master cylinder attachment W/H 3327 x 2 2 2.64
6 25 U10734-000 PEDAL ASSEMBLY – brake – left 1 309.80
6 26 -10734-001 PEDAL ASSEMBLY – brake – right 1 187.10
6 27 U41581-004 ROD – brake pedal tie 2 94.32
6 28 U41561-000 STOP – front brake pedal 2 30.68
6 29 -80122-007 WASHER – brake master cylinder attachment 2 9.53
6 30 U80122-011 WASHER – brake master cylinder attachment 6 1.25
6 31 -85012-004 WASHER – brake pedal attachment shim As Req’d 2.63
6 32 U85012-005 WASHER – brake pedal attachment shim As Req’d 2.74

COCKPIT AND ENCLOSURE

Fig. # Ref. # Part # Part Name and Description # Req. Price
7 1 450-610 ALTIMETER – (cream dial) 1 NM!
7 2 10663-00 ANGLE ASSEMBLY – baggage compartment lid support – left 1 NM!
7 3 10663-01 ANGLE ASSEMBLY – baggage compartment lid support – right 1 NM!
7 4 10606-00 BACK ASSEMBLY – rear seat 1 NM!
7 5 -51973-000 BAG ASSEMBLY – baggage compartment 1 67.50
7 6 451-320 BELT ASSEMBLY – safety – front seat – left 1 NM!
7 7 451-311 BELT ASSEMBLY – safety – front seat – right 1 NM!
7 8 451-320 BELT ASSEMBLY – safety – rear seat – left 1 NM!
7 9 451-310 BELT ASSEMBLY – safety – rear seat – right 1 NM!
7 10 U16775-000 CABLE ASSEMBLY – carburetor heat control (less knob) 1 102.38
7 11 U16775-000 CABLE ASSEMBLY – cabin heat control (less knob) 1 102.38
7 12 U10044-000 CHANNEL – sliding window guide – rear 1 69.58
7 13 U50301-000 CHANNEL – windshield side attachment – inside 2 28.65
7 14 U80222-003 CLAMP – front floorboard attachment 2 21.33
7 15 AA55487-2 CLIPS – seat back attaching 4 1.80
7 16 450-625 COMPASS 1 NM!
7 17 U50042-000 COVER – aileron pulley housing 2 39.17
7 18 10767-00 CUSHION ASSEMBLY – front seat back 1 NM!
7 19 10768-00 CUSHION ASSEMBLY – front seat bottom 1 NM!

26
