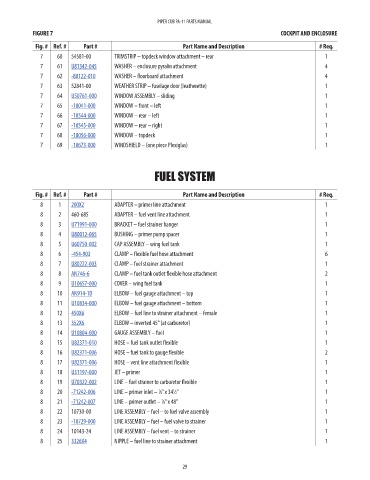

PIPER CUB PA-11 PARTS MANUAL
FIGURE 7 COCKPIT AND ENCLOSURE

Fig. # Ref. # Part # Part Name and Description # Req. Price
7 60 54581-00 TRIMSTRIP – topdeck window attachment – rear 1 NM!
7 61 U81342-045 WASHER – enclosure pyralin attachment 4 5.09
7 62 -80122-010 WASHER – floorboard attachment 4 5.31
7 63 52841-00 WEATHER STRIP – fuselage door (leatherette) 1 NM!
7 64 U50761-000 WINDOW ASSEMBLY – sliding 1 251.86
7 65 -10041-000 WINDOW – front – left 1 75.74
7 66 -10544-000 WINDOW – rear – left 1 114.35
7 67 -10545-000 WINDOW – rear – right 1 64.60
7 68 -10056-000 WINDOW – topdeck 1 131.42
7 69 -10673-000 WINDSHIELD – (one piece Plexiglas) 1 332.64

FUEL SYSTEM

Fig. # Ref. # Part # Part Name and Description # Req. Price
8 1 200X2 ADAPTER – primer line attachment 1 2.33
8 2 460-685 ADAPTER – fuel vent line attachment 1 NM!
8 3 U71991-000 BRACKET – fuel strainer hanger 1 94.36

8 4 U80012-065 BUSHING – primer pump spacer 1 16.29
8 5 U60750-002 CAP ASSEMBLY – wing fuel tank 1 142.57
8 6 -454-903 CLAMP – flexible fuel hose attachment 6 2.69
8 7 U80222-003 CLAMP – fuel strainer attachment 1 21.33
8 8 AN746-6 CLAMP – fuel tank outlet flexible hose attachment 2 1.97
8 9 U10657-000 COVER – wing fuel tank 1 446.45
8 10 AN914-1D ELBOW – fuel gauge attachment – top 1 25.00
8 11 U10834-000 ELBOW – fuel gauge attachment – bottom 1 143.01
8 12 450X6 ELBOW – fuel line to strainer attachment – female 1 7.56
8 13 352X6 ELBOW – inverted 45° (at carburetor) 1 8.63
8 14 U10804-000 GAUGE ASSEMBLY – fuel 1 251.49
8 15 U82371-010 HOSE – fuel tank outlet flexible 1 32.33
8 16 U82371-006 HOSE – fuel tank to gauge flexible 2 32.84
8 17 U82371-006 HOSE – vent line attachment flexible 1 32.84
8 18 U31197-000 JET – primer 1 72.82
8 19 U70322-002 LINE – fuel strainer to carburetor flexible 1 202.78
1
8 20 -71242-006 LINE – primer inlet – ⁄8” x 34 ⁄2” 1 75.61
1
8 21 -71242-007 LINE – primer outlet – ⁄8” x 48” 1 54.85
1
8 22 10730-00 LINE ASSEMBLY – fuel – to fuel valve assembly 1 NM!
8 23 -10729-000 LINE ASSEMBLY – fuel – fuel valve to strainer 1 76.19
8 24 10143-24 LINE ASSEMBLY – fuel vent – to strainer 1 NM!
8 25 3326X4 NIPPLE – fuel line to strainer attachment 1 1.07

29
