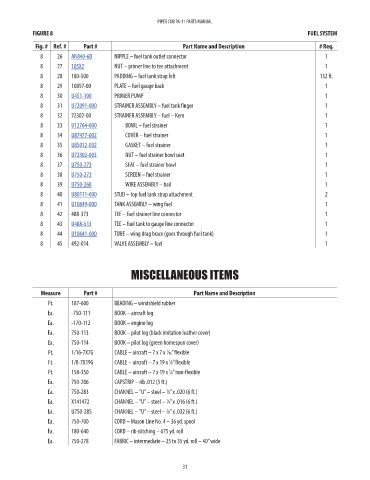

PIPER CUB PA-11 PARTS MANUAL
FIGURE 8 FUEL SYSTEM
Fig. # Ref. # Part # Part Name and Description # Req. Price
8 26 AN840-6D NIPPLE – fuel tank outlet connector 1 11.96
8 27 105X2 NUT – primer line to tee attachment 1 2.92
8 28 180-500 PADDING – fuel tank strap felt 132 ft. NM!
8 29 10857-00 PLATE – fuel gauge back 1 NM!
8 30 U451-100 PRIMER PUMP 1 462.19
8 31 U72091-000 STRAINER ASSEMBLY – fuel tank finger 1 76.36
8 32 72302-00 STRAINER ASSEMBLY – fuel – Kem 1 NM!
8 33 U12764-000 BOWL – fuel strainer 1 150.74
8 34 U87477-002 COVER – fuel strainer 1 135.42
8 35 U85012-032 GASKET – fuel strainer 1 4.62
8 36 U72302-003 NUT – fuel strainer bowl seat 1 23.52
8 37 U750-273 SEAT – fuel strainer bowl 1 20.84
8 38 U750-272 SCREEN – fuel strainer 1 3.18
8 39 U750-268 WIRE ASSEMBLY – bail 1 47.41
8 40 U80111-000 STUD – top fuel tank strap attachment 2 26.52
8 41 U10849-000 TANK ASSEMBLY – wing fuel 1 2527.34
8 42 488-373 TEE – fuel strainer line connector 1 NM!
8 43 U488-513 TEE – fuel tank to gauge line connector 1 98.42
8 44 U10641-000 TUBE – wing drag brace (goes through fuel tank) 1 131.42
8 45 492-014 VALVE ASSEMBLY – fuel 1 NM!
MISCELLANEOUS ITEMS
Measure Part # Part Name and Description Price
Ft. 187-600 BEADING – windshield rubber NM!
Ea. -750-111 BOOK – aircraft log 27.84
Ea. -170-112 BOOK – engine log 36.98
Ea. 750-113 BOOK – pilot log (black imitation leather cover) NM!
Ea. 750-114 BOOK – pilot log (green homespun cover) NM!
Ft. 1/16-7X7G CABLE – aircraft – 7 x 7 x ⁄16” flexible 0.53
1
Ft. 1/8-7X19G CABLE – aircraft – 7 x 19 x ⁄8” flexible 3.02
1
Ft. 158-350 CABLE – aircraft – 7 x 19 x ⁄8” non-flexible NM!
1
Ea. 750-286 CAPSTRIP – rib .012 (5 ft.) NM!
Ea. 750-283 CHANNEL – ”U” – steel – ⁄8” x .020 (6 ft.) NM!
3
Ea. X141472 CHANNEL – ”U” – steel – ⁄4” x .016 (6 ft.) 8.26
1
Ea. U750-285 CHANNEL – ”U” – steel – ⁄8” x .032 (6 ft.) 12.87
3
Ea. 750-700 CORD – Mason Line No. 4 – 36 yd. spool NM!
Ea. 180-640 CORD – rib stitching – 675 yd. roll NM!
Ea. 750-278 FABRIC – intermediate – 25 to 35 yd. roll – 40” wide NM!
31
