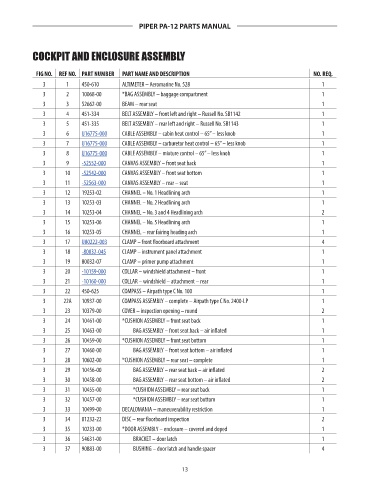

PIPER PA-12 PARTS MANUAL

COCKPIT AND ENCLOSURE ASSEMBLY

FIG NO. REF NO. PART NUMBER PART NAME AND DESCRIPTION NO. REQ. PRICE
3 1 450-610 ALTIMETER – Aeromarine No. 528 1 NM!

3 2 10068-00 *BAG ASSEMBLY – baggage compartment 1 NM!
3 3 52662-00 BEAM – rear seat 1 NM!
3 4 451-334 BELT ASSEMBLY – front left and right – Russell No. SB1142 1 NM!
3 5 451-335 BELT ASSEMBLY – rear left and right – Russell No. SB1143 1 NM!
3 6 U16775-000 CABLE ASSEMBLY – cabin heat control – 65” – less knob 1 77.86
3 7 U16775-000 CABLE ASSEMBLY – carburetor heat control – 65” – less knob 1 77.86
3 8 U16775-000 CABLE ASSEMBLY – mixture control – 65” – less knob 1 77.86
3 9 -52552-000 CANVAS ASSEMBLY – front seat back 1 97.5
3 10 -52542-000 CANVAS ASSEMBLY – front seat bottom 1 97.13
3 11 -52563-000 CANVAS ASSEMBLY – rear – seat 1 195
3 12 19253-02 CHANNEL – No. 1 Headlining arch 1 NM!
3 13 10253-03 CHANNEL – No. 2 Headlining arch 1 NM!
3 14 10253-04 CHANNEL – No. 3 and 4 Headlining arch 2 NM!
3 15 10253-06 CHANNEL – No. 5 Headlining arch 1 NM!
3 16 10253-05 CHANNEL – rear fairing heading arch 1 NM!
3 17 U80222-003 CLAMP – front floorboard attachment 4 19.34
3 18 -80032-045 CLAMP – instrument panel attachment 1 44.66
3 19 80032-07 CLAMP – primer pump attachment 1 NM!
3 20 -10159-000 COLLAR – windshield attachment – front 1 137.7
3 21 -10160-000 COLLAR – windshield – attachment – rear 1 137.7
3 22 450-625 COMPASS – Airpath type C No. 100 1 NM!
3 22A 10937-00 COMPASS ASSEMBLY – complete – Airpath type C No. 2400-LP 1 NM!
3 23 10379-00 COVER – inspection opening – round 2 NM!
3 24 10461-00 *CUSHION ASSEMBLY – front seat back 1 NM!
3 25 10463-00 BAG ASSEMBLY – front seat back – air inflated 1 NM!
3 26 10459-00 *CUSHION ASSEMBLY – front seat bottom 1 NM!
3 27 10460-00 BAG ASSEMBLY – front seat bottom – air inflated 1 NM!
3 28 10602-00 *CUSHION ASSEMBLY – rear seat – complete 1 NM!

3 29 10456-00 BAG ASSEMBLY – rear seat back – air inflated 2 NM!
3 30 10458-00 BAG ASSEMBLY – rear seat bottom – air inflated 2 NM!
3 31 10455-00 *CUSHION ASSEMBLY – rear seat back 1 NM!
3 32 10457-00 *CUSHION ASSEMBLY – rear seat bottom 1 NM!
3 33 10499-00 DECALOMANIA – maneuverability restriction 1 NM!
3 34 81232-22 DISC – rear floorboard inspection 2 NM!
3 35 10233-00 *DOOR ASSEMBLY – enclosure – covered and doped 1 NM!
3 36 54631-00 BRACKET – door latch 1 NM!
3 37 90883-00 BUSHING – door latch and handle spacer 4 NM!

13
